Item description
Materials:

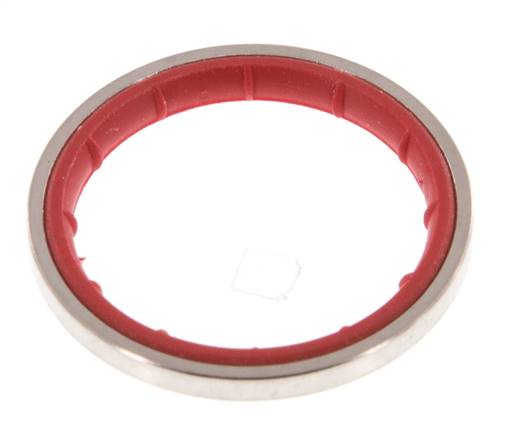

Spacer ring: Nickelplated brass, Gasket: elastomer
Temperature range:
-40 to +120 °C
Operating pressure:
-0,95 to 30 bar
Advantages:
•Sealing effect does not depend on torque,
•Largely resistant to overtightening of screw connection,
•Banjo bolt union combinations are held together reliably as the holding burls allow the ring to maintain its position on its own
Spacer ring: Nickelplated brass, Gasket: elastomer
Temperature range:
-40 to +120 °C
Operating pressure:
-0,95 to 30 bar
Advantages:
•Sealing effect does not depend on torque,
•Largely resistant to overtightening of screw connection,
•Banjo bolt union combinations are held together reliably as the holding burls allow the ring to maintain its position on its own
Properties
| for threads | G 1/2" |
| Inner diameter [mm] | 20,8 |
| Outer diameter [mm] | 26,3 |
| Height [mm] | 2,2 |
Further information on DR12EL
| Weight | 2 g / pcs |
| GTIN | 4050571265120 |
| Customs duty number | 74198090 |
Documents
- Catalogue page Atlas 9 (Page 1014) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*usable from SW 20
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
