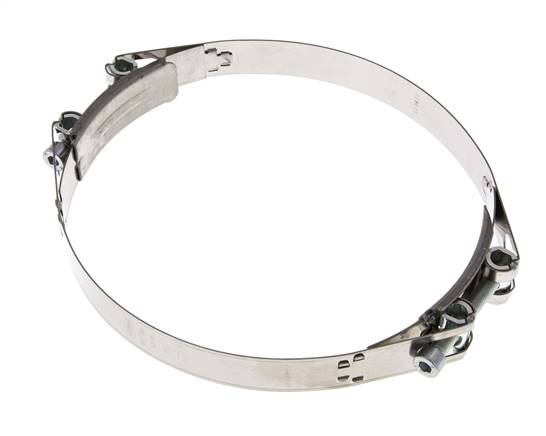

hinge bolt clamp, 2-pc., 157 to 171 mm, 1.4016 (W2)

Item number:

SSBP 171 ES

€22.80 incl. VAT
pcs
Item description
Suitable:
For use in demanding applications, such as the mounting of suction and pressure hoses with high Shore hardness or with plastic or steel inserts. Ideal for commercial vehicle construction, industry, construction machinery, farming, mining, ...

Materials:
Tape and housing: 1.4016 (W2), screw: zinc plating steel

Optional:
Material complete 1.4301 (W4) -2A

Advantages:
•Hollow pin reduces load on screw and strap. Increased service life,
•improved clamping strength thanks to 2-part design,
•greater clamping range
Properties
Ver­sion 1.4016 (W2)
Di­am­e­ter clamp­ing range [mm] 157 - 171
Tape width [mm] 20
Further information on SSBP171ES
Weight 170 g / pcs
GTIN 4050571641719
Customs duty number 73269098
RoHS compliant Yes
Manufacturer Norma
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
