Hydraulic gasket with NBR insert, for thread M 20

DR M20 HD

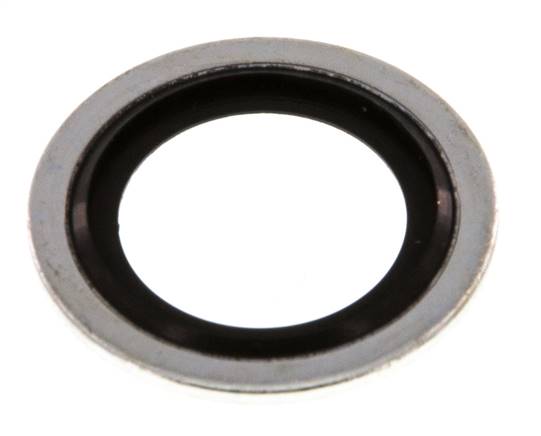

Exemplary representation: Hydraulik-Dichtring mit Elastomereinlage selbstreduzierend, (Stahl verzinkt / NBR)
2,33€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type zinc-plated steel: with NBR insert (optional with FKM insert), type 1.4301: with FKM insert

Temperature range:
-30°C up to max. +100°C (FKM: -15°C to max. +200°C)

Operating pressure:
up to 400 bar (D > 40: up to 250 bar), can be used at up to 1000 bar if countersunk on sealing surface

Advantages:
•after attaching to the thread, the gasket is held in place by the retaining lip,
•Sealing effect regardless of tightening torque,
•relative resistant to heavy tightening of a screw connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
Version with NBR insert
Thread type metric
for threads M 20
d [mm] 20,7
D [mm] 28
s [mm] 1,5
Temperature range [°C] -30 to +100
Operating pressure [bar] 400
DRM20HD
{{ $t('shop.all.gewicht') }} 3 g / pcs
{{ $t('shop.all.gtin') }} 4050571270179
{{ $t('shop.display.artikel.zollwarennummer') }} 40169991
