Item description
Version:
Modular valve base plate system for mixed assembly of valves from the model series KM 09 and KM 10 in switching function 5/2 and 5/3-way. The number of stations is arbitrary. For large numbers of stations the supply and exhaust air supply should be borne in mind. Subsequent expansion or reduction is possible at any time. The valves mounted in the RF 19 system can also be used as single valves since all the connections are threaded. For base plate assembly the pressure connection 1 and the vents 3 and 5 are common for all valves on the front of the connection plates (G 3/8").
Feeding two different supply pressures is also possible. In that case the O-ring is extended by a sealing plate (RF 19-01). Should they be separated at a point, where no point of separation is available, the pressure separation (RF 19-DT) should be assembled. The different pressures are fed from different sides.
Assembly:
When screwing in, the threaded rod comes into contact with the inclined surface of the bolt. As a result, the plates are pulled together, the O-rings seal the point of separation. If two points of separation with O-rings come into contact with each other, the sealing function is already in place. On disassembling, all the components can be reused.
Scope of delivery:
All single discs are delivered complete with seals, valve fixations and assembly bolts, a separate order is not necessary.
Modular valve base plate system for mixed assembly of valves from the model series KM 09 and KM 10 in switching function 5/2 and 5/3-way. The number of stations is arbitrary. For large numbers of stations the supply and exhaust air supply should be borne in mind. Subsequent expansion or reduction is possible at any time. The valves mounted in the RF 19 system can also be used as single valves since all the connections are threaded. For base plate assembly the pressure connection 1 and the vents 3 and 5 are common for all valves on the front of the connection plates (G 3/8").
Feeding two different supply pressures is also possible. In that case the O-ring is extended by a sealing plate (RF 19-01). Should they be separated at a point, where no point of separation is available, the pressure separation (RF 19-DT) should be assembled. The different pressures are fed from different sides.
Assembly:
When screwing in, the threaded rod comes into contact with the inclined surface of the bolt. As a result, the plates are pulled together, the O-rings seal the point of separation. If two points of separation with O-rings come into contact with each other, the sealing function is already in place. On disassembling, all the components can be reused.
Scope of delivery:
All single discs are delivered complete with seals, valve fixations and assembly bolts, a separate order is not necessary.
Properties
| Version | Base plate system for KM 09 |

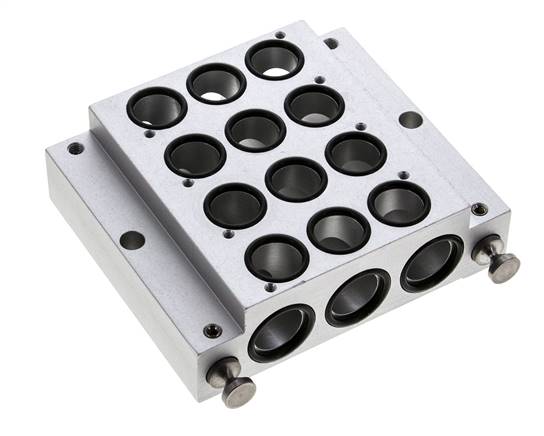

| Description | Intermediate plate with four valve seats |
| Mounting kit (2 bolts, threaded rod and 3 o-rings) | RF 19-02 |
| O-rings for valve assembly (three- pieces) | RF 19-03 |
| Sealing plates for two pressure ranges | RF 19-01 |
| Pressure separation for two pressure ranges | RE 19-DT |
Further information on RF09Z4
| Weight | 550 g / pcs |
| GTIN | 4050571577292 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 755) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
