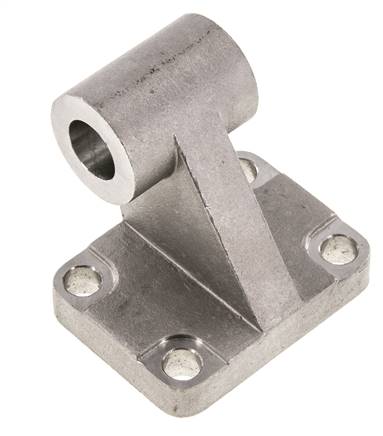

ISO 15552-90° loop strap swivel mounting 63 mm, 1.4401
Item number:
TD 63 ES
Properties
| Material | 1.4401 |
| for piston diameter [mm] | 63 |
| B [mm] | 40 |
| D [mm] | 16 |
| G [mm] | 37 |
| H [mm] | 50 |
| K [mm] | 12 |
| M [mm] | 67 |
| N [mm] | 52 |
| S [mm] | 9,0 |
| W1 [mm] | 35 |
| W2 [mm] | 50 |
Further information on TD63ES
| Weight | 600 g / pcs |
| GTIN | 4050571691028 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 841) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
