Item description
Materials:
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 to +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 to +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Properties

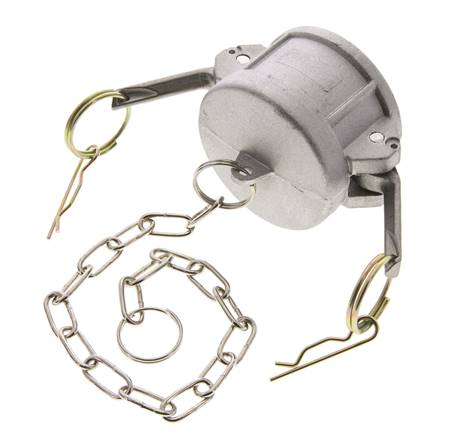

| Material | Aluminium |
| size | 2" |
| DN [mm] | 50 (2") |
| for plug diameter [mm] | 63,0 |
| PN [bar] | 18 |
Further information on KLDV20A
| Weight | 330 g / pcs |
| GTIN | 4050571166717 |
| Customs duty number | 76090000 |
| RoHS compliant | Yes |
YouTube videos:
Documents
*For liquids, please use your preferred stainless steel, brass or aluminium, pressure values at +40°C, **plug Ø 53,4 mm with reduced connection. This does not comply with the standard, ***four hand levers, ****one hand lever without safety pin
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
