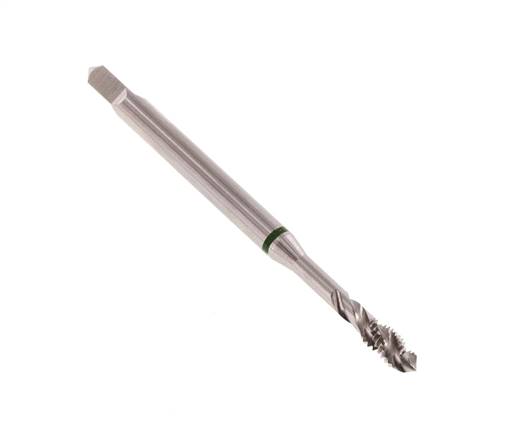

Machine tap for blind hole, 35° right-hand helix M 4 (HSS-E)
Item number:
GEW MSV M4 HSSE
Item description
Description:
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
Properties
| Version | Machine tap for blind hole, 35° right-hand helix |
| Thread | M 4 |
| Core hole diameter [mm] | 3,3 |
| Square (DIN 10) [mm] | 3,4 |
| Total length [mm] | 63 |
| Thread length [mm] | 6 |
| Shaft diameter [mm] | 4,5 |
| First cut | Shape C, 2 - 3 gears |
Further information on GEWMSVM4HSSE
| Weight | 8,4 g / pcs |
| GTIN | 4050571161866 |
| Customs duty number | 82074010 |
Documents
- Catalogue page Atlas 9 (Page 992) (PDF)
- Data sheet (Print view)
*in a stable industrial magazine
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
