€41.77 incl. VAT
pcs
Item description
Suitable:

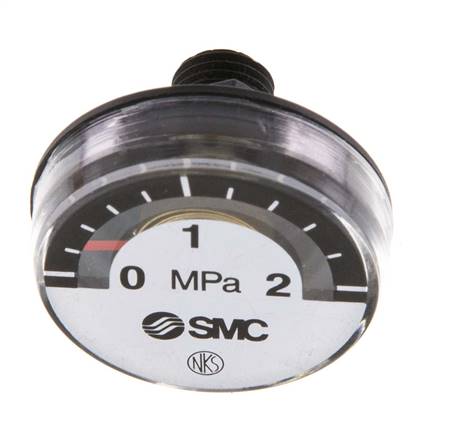

Mini-pressure gauges are mainly used for pneumatic pressure boosters.

Materials:
Housing: Plastic, measuring system and pointer movement: Cu alloy (Ø 23: hand gear: plastic), viewing window: Acrylic glass

Class:
4

Temperature range:
-20 to +60 °C

Protection class:
IP 42
Properties
Di­am­e­ter [mm] 26
Con­nec­tion R 1/16"
Dis­play range [bar] 0 MPa - 2 MPa
Scale di­vi­sion [bar] 0,2 MPa
Further information on MWDUE400
Weight 13 g / pcs
GTIN 4050571514488
Customs duty number 84812090
Documents
*Display range 0 - 2 MPa corresponds to 0 - 20 bar


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
