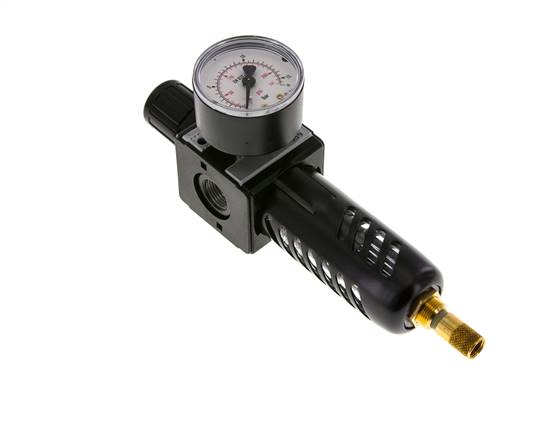

MULTIFIX Filter regulator, G 3/8", 0,5 to 10bar, model series 1
Item number:
FR 38 S AM
Item description
Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (model series 0 when using coupling kit 1.5 - 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm (model series 5: 40 µm)
Condensate draining:
semi-automatic****
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Max. condensate amount:
25 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 50 mm pressure gauge
Flow:
1600 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure** -KE11, version with protective cage -S, Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC, Safety version: can be locked with upstream lockable ball valve and start-up valve -Si
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (model series 0 when using coupling kit 1.5 - 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm (model series 5: 40 µm)
Condensate draining:
semi-automatic****
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Max. condensate amount:
25 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 50 mm pressure gauge
Flow:
1600 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure** -KE11, version with protective cage -S, Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC, Safety version: can be locked with upstream lockable ball valve and start-up valve -Si
Properties
| Version | Filter regulator |
| Thread | G 3/8" |
| Pressure regulation range [bar] | 0,5 - 10 |
| Container design | Plastic container with protective cage |
| Condensate drain | automatic |
| Pressure gauge display [bar] | 0 - 16 |
| Mounting brackets | W 1 |
| Mounting brackets with panel union nut | MW 1 |
| Coupling kit | KP 1 |
| input pressure [bar] | 1,5 - 16 |
Further information on FR38SAM
| Weight | 490 g / pcs |
| GTIN | 4050571308353 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
YouTube videos:
Documents
*Standard series, please prefer for use, since the pressure regulation range is universally usable, **Volkswagen closer (is supplied without a spanner), ***measured at P1 = 10 bar, P2 = 6.3 bar and 1 bar pressure drop, ****As soon as the input pressure drops below the minimum input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
