Item description
Materials:
Body: aluminium, seals: NBR
Scope of delivery:

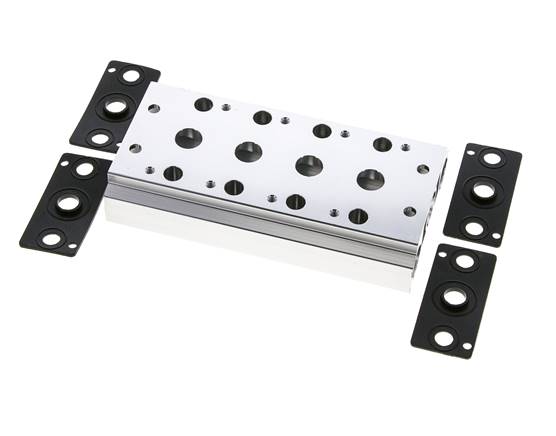

Basic body with screws and seals (please order valves separately)
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws and seals (please order valves separately)
Properties
| Design | for 5/2-way & 5/3-way valves |
| Version | for model series RV20 |
| Number of stations [PCE] | 4 |
| Description | Multiple manifold |
| matching dummy plate* | V 52-BP |
| *Spare seal including screws | V 52-REP |
| A [mm] | 23,0 |
| B [mm] | 23 |
| C [mm] | 6 |
| D [mm] | 59,0 |
| E [mm] | 38,0 |
| F [mm] | 35,0 |
| G1 (2x) | G 1/4" |
| G2 (exhaust air) | 4x G 1/4" |
| H [mm] | 0 |
| J [mm] | 4,5 |
| K [mm] | 23,5 |
| L [mm] | 17 |
| M [mm] | 43,0 |
| N [mm] | 9,00 |
| O [mm] | 5,4 |
| P [mm] | 21 |
Further information on V52-4
| Weight | 175 g / pcs |
| GTIN | 4050571715953 |
| Customs duty number | 84819000 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
