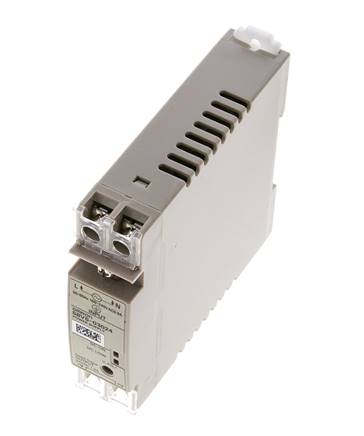

Omron switching power supply for DIN rails 24 V DC, 30 W
Item number:
S8VS03024
Item description
Power supply:
100 - 240 V AC
Temperature range:
-10°C to max. +60°C (S8VS06024 and S8VS12024 type: -10°C to max. +40°C)
Overload protection:
from 105% of nominal load
100 - 240 V AC
Temperature range:
-10°C to max. +60°C (S8VS06024 and S8VS12024 type: -10°C to max. +40°C)
Overload protection:
from 105% of nominal load
Properties
| Dimensions W x H x D [mm] | 22,5 x 85,0 x 96,4 |
| Outlet voltage* | 24 V DC |
| Outlet current | 1,3 A |
| Nominal performance [W] | 30 |
| ambient temperature [°C] | -10 to +60 |
Further information on S8VS03024
| Weight | 180 g / pcs |
| GTIN | 4050571609429 |
| Customs duty number | 85044030 |
| Manufacturer | Omron |
Documents
*+15% / -10% adjustable
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
