Item description
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
2.5 W /station
Protection class:
IP 40
Version:
with LED and protection circuit
Advantages:
•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement
Description:
The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.
Assembly:
1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.
Function:
Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF4000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
2.5 W /station
Protection class:
IP 40
Version:
with LED and protection circuit
Advantages:
•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement
Description:
The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.
Assembly:
1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.
Function:
Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF4000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
Properties

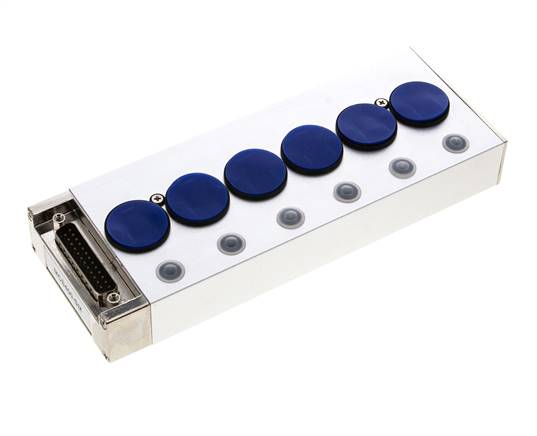

| Number of stations [PCE] | 6 |
| Description | Terminal box without jump module |
| A [mm] | 193,5 |
| B [mm] | 181,5 |
| Manifold (air) | MF4500-6 |
Further information on MCS411-6
| Weight | 400 g / pcs |
| GTIN | 4050571483166 |
| Customs duty number | 85365019 |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 773) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
