Item description
Application:

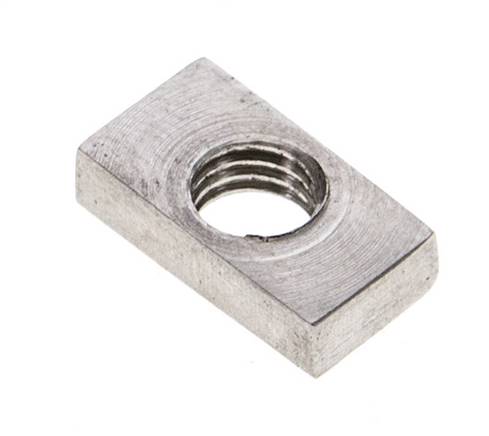

The assembly nut is inserted in the T-groove of the cylinder and is such that an M5 screw can be positioned wherever desired. The nut is suitable for mounting assemblies directly on the cylinders. When using this, it is not possible to mount the cylinder itself.
The assembly nut is inserted in the T-groove of the cylinder and is such that an M5 screw can be positioned wherever desired. The nut is suitable for mounting assemblies directly on the cylinders. When using this, it is not possible to mount the cylinder itself.
Properties
| for piston diameter [mm] | 25 - 63 |
| Thread | M 5 |
| Height [mm] | 3,5 |
| Length x width [mm] | 12 x 6,5 |
Further information on LZGM
| Weight | 1,5 g / pcs |
| GTIN | 4050571470005 |
| Customs duty number | 84129080 |
Documents
- Documentation (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
