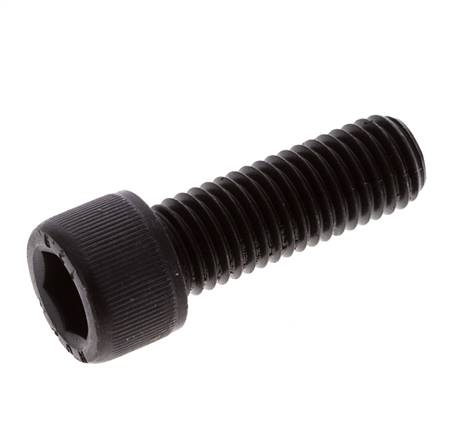

Socket head cap screw DIN 912, M 12x35, Steel 12.9 blank (black)
Item number:
912-M12X35 ST 12.9
Item description
Note:
Items with part threads will also be supplied, depending on the manufacturer, threaded to approaching the head.
Optional:
Stahl blank (schwarz) -ST, Festigkeitsklasse 10.9 -10.9, Festigkeitsklasse 12.9 -12.9, Edelstahl A4 -ES4A
Items with part threads will also be supplied, depending on the manufacturer, threaded to approaching the head.
Optional:
Stahl blank (schwarz) -ST, Festigkeitsklasse 10.9 -10.9, Festigkeitsklasse 12.9 -12.9, Edelstahl A4 -ES4A
Properties
| Material | Steel 12.9 blank (black) |
| D | M 12 |
| L [mm] | 35 |
| B (min.) [mm] | reaching close to head |
| Dk (max) [mm] | 18,0 |
| K (max) [mm] | 12,0 |
| S [mm] | 10 |
Further information on 912-M12X35ST12.9
| Weight | 42 g / pcs |
| GTIN | 4050571131692 |
| Customs duty number | 73181568 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 1134_1135) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
