Item group

Hexagonal nuts, self-locking with plastic compression ring, DIN 985 /ISO 10511

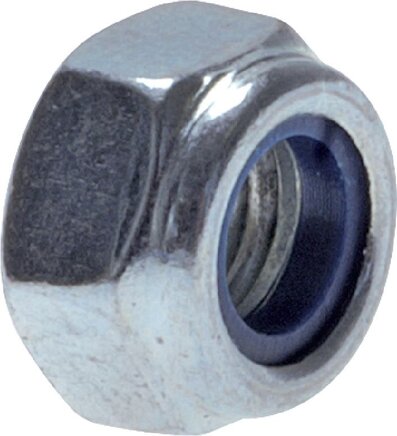

Name: Hexagonal nut, self-locking. DIN 985, M 3, Galvanised steel 6 / 8
Brand: Landefeld
SKU: 985-M3
Price: 0.03 EUR
Availability: InStock

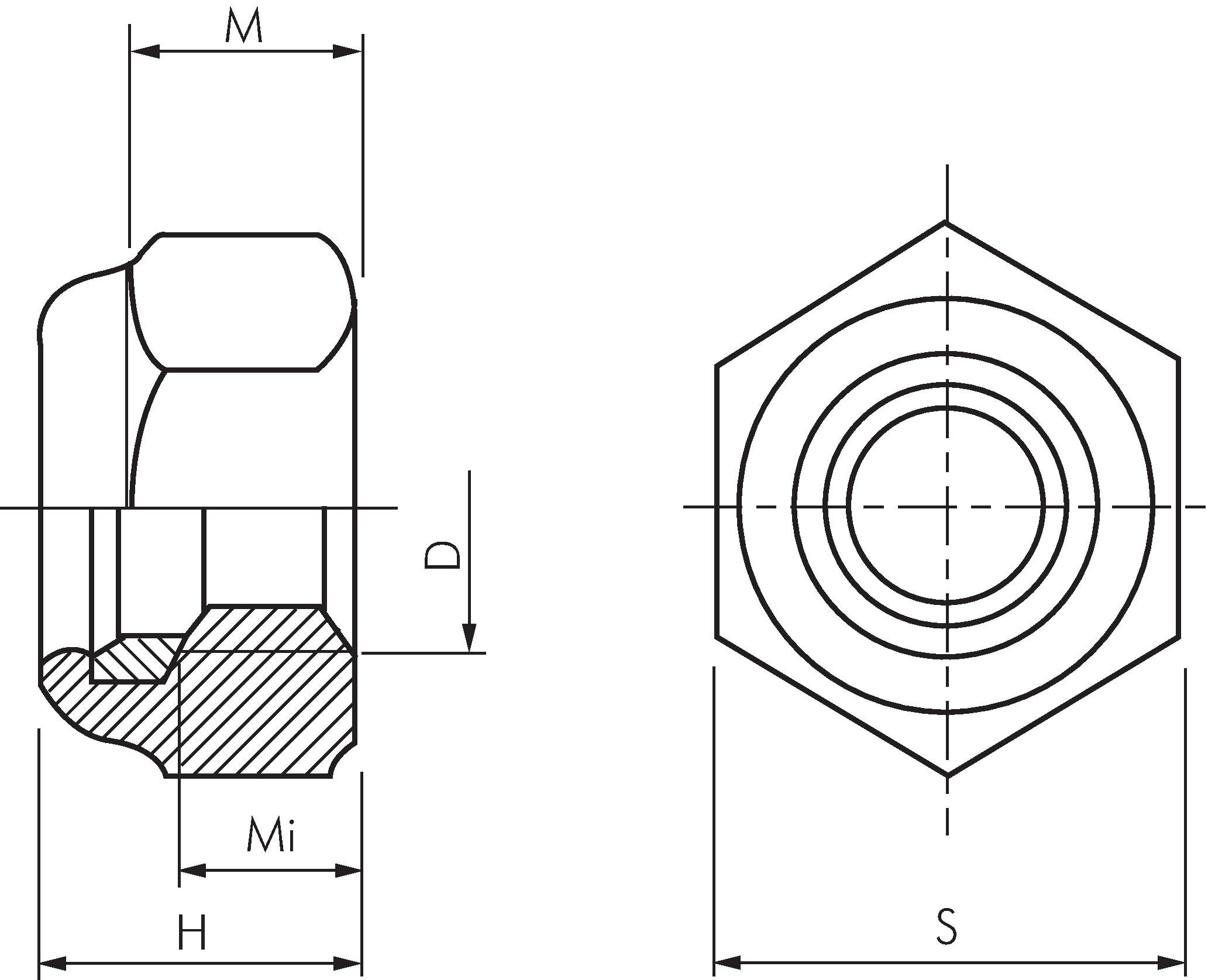

Principskitse: Selvlåsende møtrik DIN 985 / ISO 10511 (galvaniseret stål 6/8*)

*in line with manufacturer's choice

Documents:

Catalogue page Atlas 9 (Page 1127) (PDF)

More information

Hexagonal nuts, self-locking with plastic compression ring, DIN 985 /ISO 10511:

20 of 31 articles

985-M3

Hexagonal nut, self-locking. DIN 985, M 3, Galvanised steel 6 / 8

from €0.0225 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 3	4	2,4

985-M4

Hexagonal nut, self-locking. DIN 985, M 4, Galvanised steel 6 / 8

from €0.0267 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 4	5	2,9

985-M5

Hexagonal nut, self-locking. DIN 985, M 5, Galvanised steel 6 / 8

from €0.02 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 5	5	3,2

985-M6

Hexagonal nut, self-locking. DIN 985, M 6, Galvanised steel 6 / 8

from €0.0263 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 6	6	4,0

985-M8

Hexagonal nut, self-locking. DIN 985, M 8, Galvanised steel 6 / 8

from €0.0634 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 8	8	5,5

985-M10

Hexagonal nut, self-locking. DIN 985, M 10, Galvanised steel 6 / 8

from €0.1353 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 10	10	6,5

985-M12

Hexagonal nut, self-locking. DIN 985, M 12, Galvanised steel 6 / 8

from €0.1554 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 12	12	8,0

985-M14

Hexagonal nut, self-locking. DIN 985, M 14, Galvanised steel 6 / 8

from €0.3024 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 14	14	9,5

985-M16

Hexagonal nut, self-locking. DIN 985, M 16, Galvanised steel 6 / 8

from €0.4192 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 16	16	10,5

985-M18

Hexagonal nut, self-locking. DIN 985, M 18, Galvanised steel 6 / 8

from €0.4904 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 18	18,5	13,0

985-M20

Hexagonal nut, self-locking. DIN 985, M 20, Galvanised steel 6 / 8

from €0.526 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 20	20	14,0

985-M22

Hexagonal nut, self-locking. DIN 985, M 22, Galvanised steel 6 / 8

from €1.0984 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 22	22	15,0

985-M24

Hexagonal nut, self-locking. DIN 985, M 24, Galvanised steel 6 / 8

from €1.1529 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 24	24	15,0

985-M27

Hexagonal nut, self-locking. DIN 985, M 27, Galvanised steel 6 / 8

from €2.8465 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 27	27	17,0

985-M30

Hexagonal nut, self-locking. DIN 985, M 30, Galvanised steel 6 / 8

from €3.7592 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 30	30	19,0

985-M33

Hexagonal nut, self-locking. DIN 985, M 33, Galvanised steel 6 / 8

from €8.0575 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 33	33	22,0

985-M36

Hexagonal nut, self-locking. DIN 985, M 36, Galvanised steel 6 / 8

from €6.9367 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 36	36	25,0

985-M39

Hexagonal nut, self-locking. DIN 985, M 39, Galvanised steel 6 / 8

from €18.1463 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Galvanised steel 6 / 8*	M 39	39	27,0

985-M3 ES

Hexagonal nut, self-locking. DIN 985, M 3, Stainless steel A2

from €0.0495 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Stainless steel A2	M 3	4	2,4

985-M4 ES

Hexagonal nut, self-locking. DIN 985, M 4, Stainless steel A2

from €0.0607 incl. VAT

Quantity

pcs

Immediately available

Material	D	H [mm]	M (min.) [mm]
Stainless steel A2	M 4	5	2,9

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
