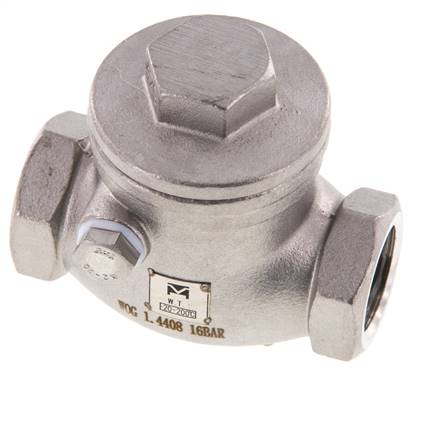

Item description
Materials:
Body: 1.4408, bolt: 1.4401
Temperature range:
-20 to +200 °C
Optional:
Certificate 3.1
Warning:
Only suitable for fluid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Body: 1.4408, bolt: 1.4401
Temperature range:
-20 to +200 °C
Optional:
Certificate 3.1
Warning:
Only suitable for fluid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Properties
| G | G 1/2" |
| L [mm] | 65 |
| H [mm] | 45 |
Further information on RUCK12SESE
| Weight | 320 g / pcs |
| GTIN | 4050571607111 |
| Customs duty number | 84818081 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 807) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
