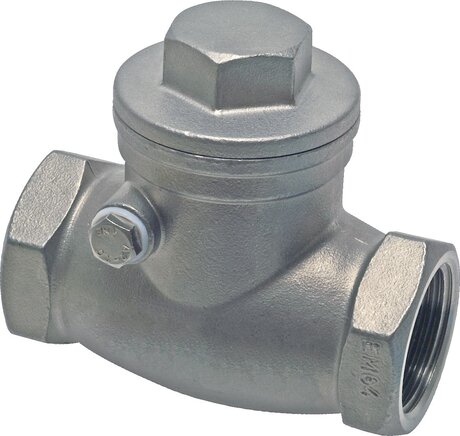

Swing check valves, metallic sealing, PN 16

Description

Materials:
Housing: 1.4408, bolts: 1.4301

Temperature range:
-20°C to +200°C

Optional:
Certificate 3.1

Warning:
Only suitable for fluid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!

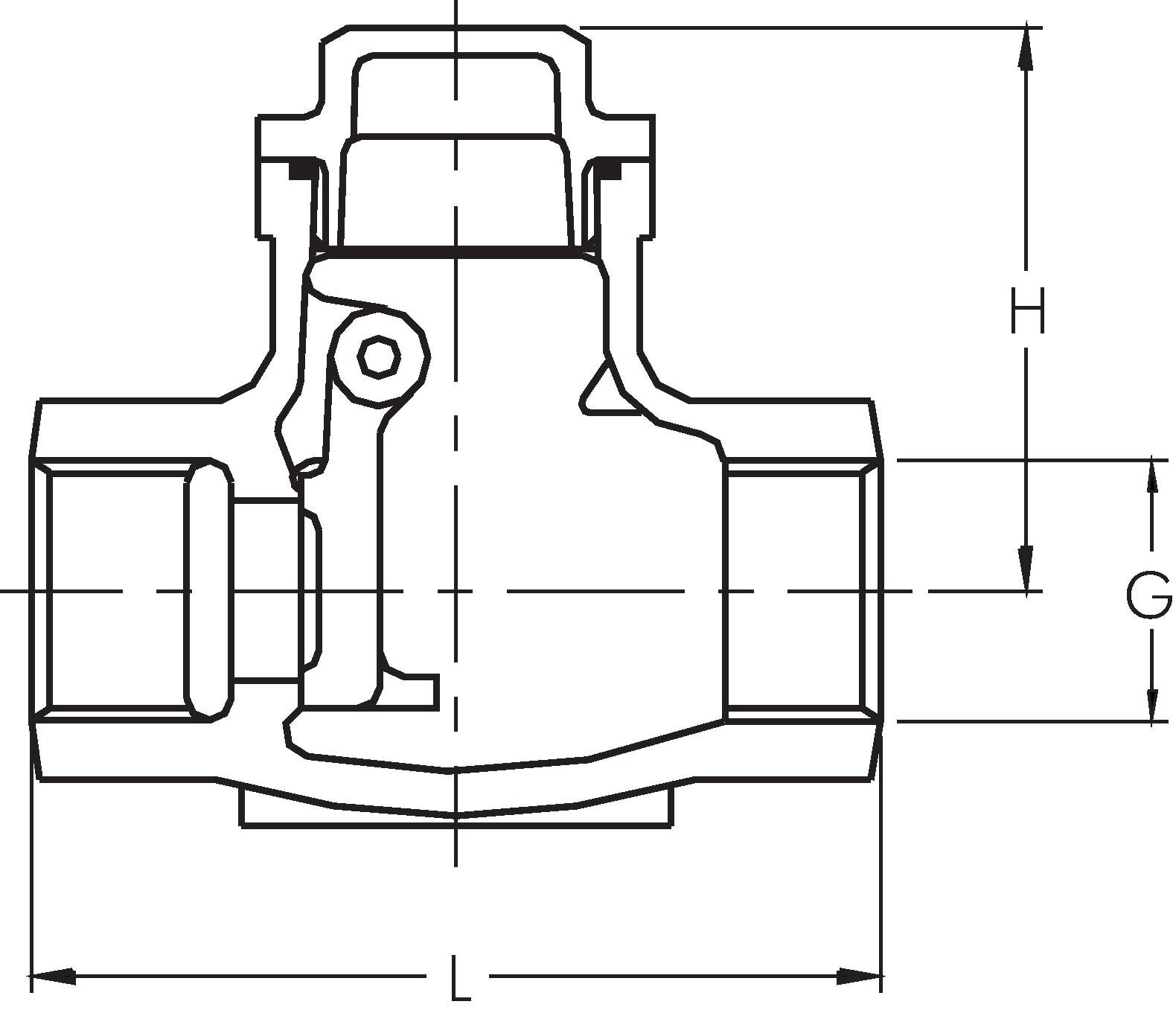

Find the right item

G
L [mm]
H [mm]

Swing check valves, metallic sealing, PN 16: 8 of 8 items

Stainless steel swing check valve G 1/2",PN 16
  • G

    G 1/2"

  • L [mm]

    65

  • H [mm]

    44

Immediately available

64,06 €

Stainless steel swing check valve G 3/4",PN 16
  • G

    G 3/4"

  • L [mm]

    80

  • H [mm]

    52

Immediately available

74,88 €

Immediately available

100,43 €

Stainless steel swing check valve G 1-1/4",PN 16
  • G

    G 1-1/4"

  • L [mm]

    105

  • H [mm]

    67

Immediately available

135,40 €

Stainless steel swing check valve G 1-1/2",PN 16
  • G

    G 1-1/2"

  • L [mm]

    120

  • H [mm]

    79

Immediately available

198,19 €

Stainless steel swing check valve G 2",PN 16
  • G

    G 2"

  • L [mm]

    139

  • H [mm]

    80

Immediately available

244,11 €

Stainless steel swing check valve G 2-1/2",PN 16
  • G

    G 2-1/2"

  • L [mm]

    181

  • H [mm]

    96

Immediately available

392,31 €

Stainless steel swing check valve G 3",PN 16
  • G

    G 3"

  • L [mm]

    200

  • H [mm]

    104

Immediately available

565,91 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
