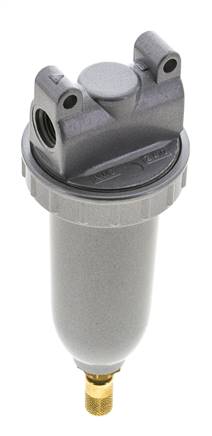

Item description
Version:
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Optional:
Version with protective cage -S, Version with metal bowl* (1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar), -M, automatic discharge* -AM, Automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Optional:
Version with protective cage -S, Version with metal bowl* (1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar), -M, automatic discharge* -AM, Automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Properties
| Model series | Standard 1 |
| Thread | G 1/4" |
| flow [l/min] | 800 |
| Container design | Metal bowl without inspection tube |
| Condensate drain | automatic |
| Mounting brackets | ZW 10 |
| Replacement filter | FILTER DF00-5 |
| input pressure [bar] | 1,5 - 16 |
| Max. condensate amount [cm³] | 35 |
| Filter pore width | 5 µm |
| H [mm] | 149 |
| H1 [mm] | 130 |
| L [mm] | 48 (Ø 57) |
Further information on DF11MAM
| Weight | 420 g / pcs |
| GTIN | 4050571247263 |
| Customs duty number | 84213925 |
| RoHS compliant | Yes |
Documents
*When combined with a metal bowl max. 16 bar, **as soon as the inlet pressure falls below the minimum input pressure, the drain valve opens automatically. By screwing the drain screw tight, you can prevent the semi-automatic drain valve from opening
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
