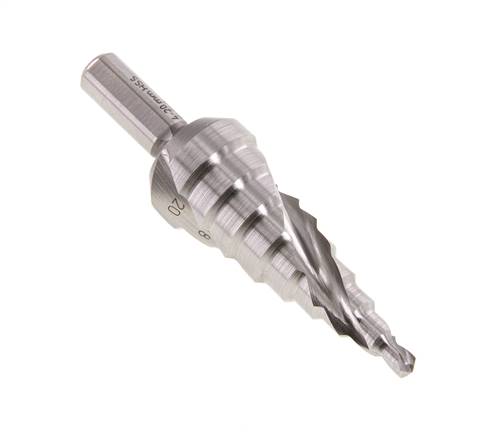

Step drill with spiral flute (Individual drill), Sizes 1
Item number:
BOHR BSS1 HSS
Item description
Description:
Powerful, right-hand cutting sheet metal peeling drill / step drill with sharp drill point (cross ground in accordance with DIN 1412 C) for drilling holes in sheet metal up to 4 mm thickness. The sharp drill tip makes it possible to drill into thin-walled materials without pre-drilling. The deep-ground flute (spiral flute on step drills) ensures absolutely smooth running and high cutting performance. With the step drill, the next higher step can be used to deburr the hole.
Quality:
HSS-G:
Use for steel, cast steel alloys and non-alloys, grey, malleable, ductile and cast iron, sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass, bronze and plastics
Powerful, right-hand cutting sheet metal peeling drill / step drill with sharp drill point (cross ground in accordance with DIN 1412 C) for drilling holes in sheet metal up to 4 mm thickness. The sharp drill tip makes it possible to drill into thin-walled materials without pre-drilling. The deep-ground flute (spiral flute on step drills) ensures absolutely smooth running and high cutting performance. With the step drill, the next higher step can be used to deburr the hole.
Quality:
HSS-G:
Use for steel, cast steel alloys and non-alloys, grey, malleable, ductile and cast iron, sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass, bronze and plastics
Properties
| Version | Step drill with spiral flute (Individual drill) |
| Diameter [mm] | 4 - 6 - 8 - 10 - 12 - 14 - 16 - 18 - 20 |
| Sizes | 1 |
| Total length [mm] | 75 |
| Shaft diameter [mm] | 8 |
Further information on BOHRBSS1HSS
| Weight | 65 g / pcs |
| GTIN | 4050571165130 |
| Customs duty number | 82075060 |
| Manufacturer | RUKO |
Documents
- Catalogue page Atlas 9 (Page 989) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
