Item description
Application:

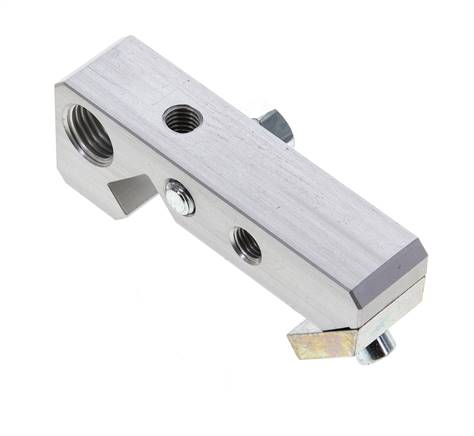

depending on the applications, you can choose between a fixed or an adjustable stop. The adjustable stop can be moved freely in the cylinder tube. Each stop has a limit-stop screw as well as a female thread to receive a shock absorber. Stops can only be used with a guide cylinder LZF, LZKF.
depending on the applications, you can choose between a fixed or an adjustable stop. The adjustable stop can be moved freely in the cylinder tube. Each stop has a limit-stop screw as well as a female thread to receive a shock absorber. Stops can only be used with a guide cylinder LZF, LZKF.
Properties
| Version | adjustable |
| for piston diameter [mm] | 32 |
| Matching shock absorber | MA 150 EUM |
| AH [mm] | 3,0 |
| E [mm] | 84 |
| F [mm] | 70,0 |
| G [mm] | 14,5 |
| H [mm] | 41,0 |
| M | M 14x1,5 |
| N [mm] | 12 |
| O [mm] | 20 |
| T | M 5 |
Further information on LZ32ASV
| Weight | 120 g / pcs |
| GTIN | 4050571469580 |
| Customs duty number | 84129080 |
YouTube videos:
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
