Item description
Application:

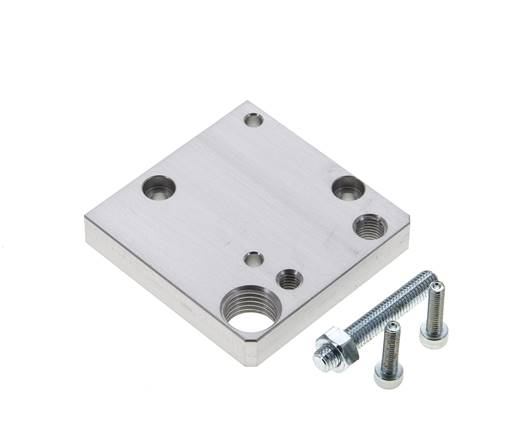

depending on the applications, you can choose between a fixed or an adjustable stop. The adjustable stop can be moved freely in the cylinder tube. Each stop has a limit-stop screw as well as a female thread to receive a shock absorber. Stops can only be used with a guide cylinder LZF, LZKF.
depending on the applications, you can choose between a fixed or an adjustable stop. The adjustable stop can be moved freely in the cylinder tube. Each stop has a limit-stop screw as well as a female thread to receive a shock absorber. Stops can only be used with a guide cylinder LZF, LZKF.
Properties
| Version | set |
| for piston diameter [mm] | 25 |
| Matching shock absorber | MA 150 EUM |
| AH [mm] | 2,0 |
| E [mm] | 72 |
| F [mm] | 57,0 |
| G [mm] | 12,5 |
| H [mm] | 33,0 |
| M | M 14x1,5 |
| N [mm] | 10 |
| O [mm] | 20 |
| T | M 4 |
Further information on LZ25AS
| Weight | 95 g / pcs |
| GTIN | 4050571469467 |
| Customs duty number | 84129080 |
YouTube videos:
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
