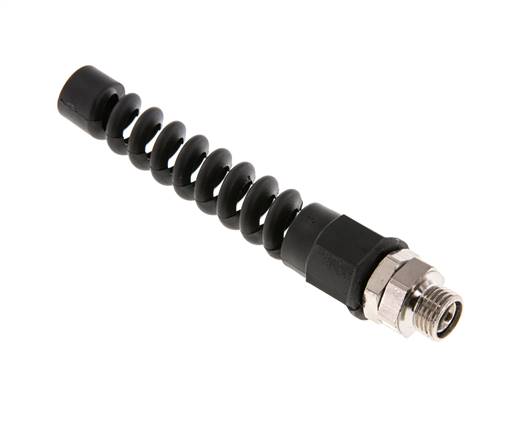

Straight swivel joint for SPK..PU G 1/4"-9,5x6,3mm
Item number:
SPK 14/96 PU
Item description
Operating pressure:
-0,95 to 20 bar
Temperature range:
-20 to +80 °C
Suitable:
For slow rotary movements, e.g. to avoid the twisting of hoses.
-0,95 to 20 bar
Temperature range:
-20 to +80 °C
Suitable:
For slow rotary movements, e.g. to avoid the twisting of hoses.
Properties
| Material | Nickel-plated brass |
| Screw-in thread | G 1/4" |
| Hose diameter (outer x inner) [mm] | 9,5x6,3 |
Further information on SPK14/96PU
| Weight | 55 g / pcs |
| GTIN | 4050571635961 |
| Customs duty number | 39173900 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 99) (PDF)
- Data sheet (Print view)
*brass blank without buckling protection. **without buckling protection
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
