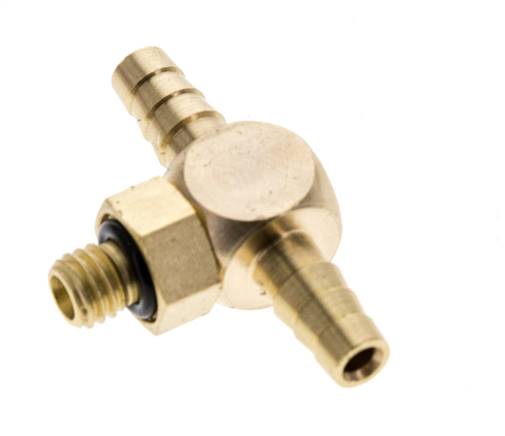

Item description
Materials:
Body: brass, seal: NBR
Temperature range:
-20 to +60 °C
Assembly:
Push the tube on until it reaches the stop.
Dismounting:
Remove PU/cut open hose
Operating pressure:
PA-hose: 10 bar, PU-hose: 6 bar. (without tensile stress).
Body: brass, seal: NBR
Temperature range:
-20 to +60 °C
Assembly:
Push the tube on until it reaches the stop.
Dismounting:
Remove PU/cut open hose
Operating pressure:
PA-hose: 10 bar, PU-hose: 6 bar. (without tensile stress).
Properties
| Thread | M 5 |
| Hose diameter (inner) [mm] | 4 |
| H [mm] | 8,5 |
| Spanner width [mm] | 8 |
Further information on TCN54MS
| Weight | 7,5 g / pcs |
| GTIN | 4050571690496 |
| Customs duty number | 74198090 |
Documents
- Catalogue page Atlas 9 (Page 126) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
