Item description
Materials:
Polyamide
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 15 bar
Advantages:

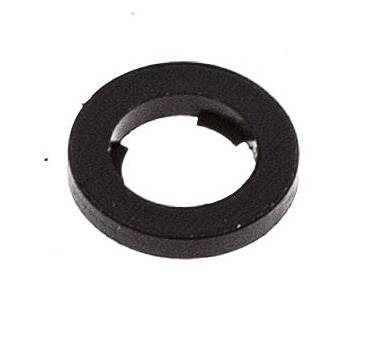

•Banjo bolt union combinations are held together reliably as the holding burls allow the ring to maintain its position on its own
Polyamide
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 15 bar
Advantages:
•Banjo bolt union combinations are held together reliably as the holding burls allow the ring to maintain its position on its own
Properties
| for threads | M 5 |
| Inner diameter [mm] | 5,2 |
| Outer diameter [mm] | 8,1 |
| Height [mm] | 1,2 |
Further information on DR50P
| Weight | 0,1 g / pcs |
| GTIN | 4050571266387 |
| Customs duty number | 39269097 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 1014) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
