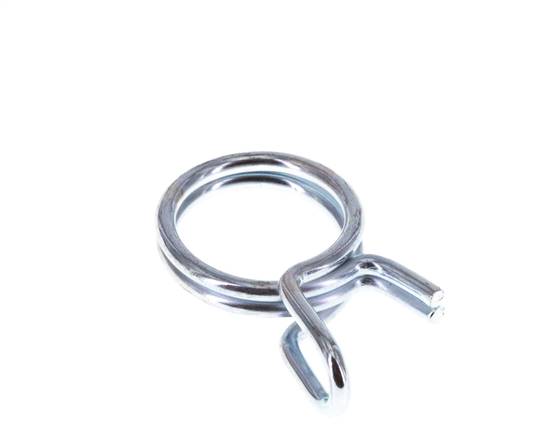

wire retention clamp, 16,4 mm, clamping range 15,9 to 16,8 mm

Item number:

DNSS 16,4

€0.14 incl. VAT
pcs
Item description
Materials:
zinc plated spring steel

Suitable:
Made of steel wire, the self re-tensioning hose clip can handle pressures up to a max. 4 bar. To open the clamp, simply use pliers to press the clamp's legs together. The clamp tightens itself by spring force, and so holds hoses safely and reliably, even in a widely fluctuating range of temperatures, and materials with a high thermal expansion coefficient. Prior to finalising a connection, we recommend a thorough inspection of the clamp strength.
Properties
Ideal clamp­ing di­am­e­ter [mm] 16,4
Di­am­e­ter clamp­ing range [mm] 15,9 - 16,8
Width [mm] 8,4
Further information on DNSS16,4
Weight 3,3 g / pcs
GTIN 4050571260583
Customs duty number 73269098
RoHS compliant Yes
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
