Data sheet
VASB-8-M5-PUR-B (1395637) Suction cup complete
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO036447

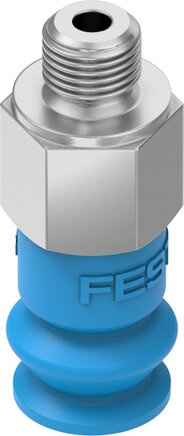

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Connection position | top |
| installation position | arbitrary |
| Symbol | 991485 |
| Suction shape | Round folding bellows1.5 times |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Fastening type | Via vacuum connection |
| vacuum connection | M5 |
| colour | blue |
| Shore hardness | 60 ± 5 |
| Stud material | Brass |
| Werkstoff-Hinweis | RoHs compliant |
| Suction cups material | PUR |
| Height balance suction cup [mm] | 3,3 |
| Nominal width [mm] | 2 |
| Suction cup diameter [mm] | 8 |
| Suction cup volume [] | 0,163 |
| Effective suction diameter [mm] | 7,1 |
| Operating pressure [MPa] | -0,095 bis 0 |
| Nominal operating pressure [MPa] | -0,07 |
| ambient temperature [°C] | -20 to 60 |
| Holding force for nominal operating pressure [N] | 2,80 |
| Product weight [g] | 4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 4 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568061982 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84799070 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
