3/2-way & 5/2-way limit switch, Model series VM

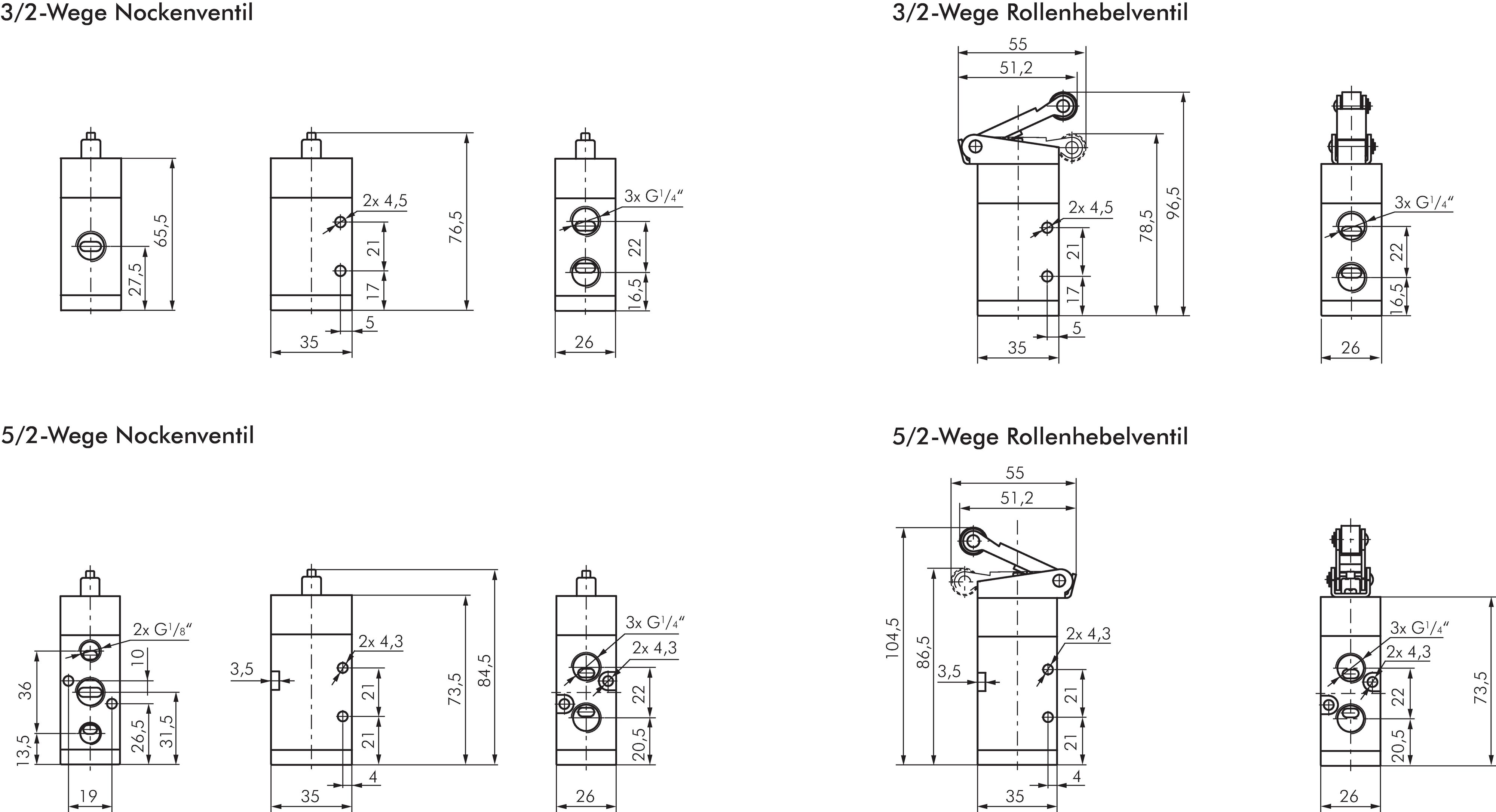

Exemplary representation: 3/2-way roller lever Exemplary representation: 3/2-way cam Exemplary representation: 5/2-way cam Exemplary representation: 5/2-way roller lever Drawing Schematic symbol: 3/2-way cam Schematic symbol: 3/2-way roller lever Schematic symbol: 5/2-way cam Schematic symbol: 5/2-way roller lever

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5°C to +60°C

Operating pressure:

0 - 8 bar

Flow:

800 l/min

Media:

oiled and unoiled filtered compressed air

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName_cleanfilter }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way & 5/2-way limit switch, Model series VM: {{ $t('shop.all.n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelAngezeigt} ) }}
3/2-way (NC/NO) Limit switch with Lug, G 1/4"
3/2-way (NC/NO) Limit switch with Roller lever, G 1/4"
5/2-way Limit switch with Lug, G 1/4" (exhaust G 1/8")
5/2-way Limit switch with Roller lever, G 1/4" (exhaust G 1/8")
