Item group

3/2-way solenoid valves G 1/4", model series RV20

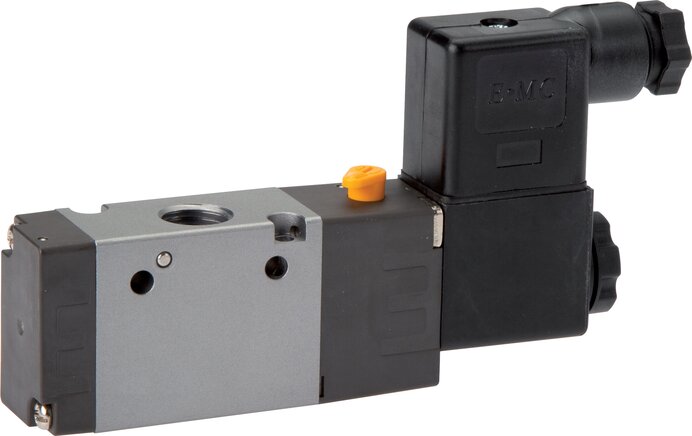

Exemplary representation: NC/NO with spring return Exemplary representation: Pulse valve Drawing Schematic symbol: closed (NC) Schematic symbol: open (NO) Schematic symbol: Pulse valve

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5°C to +60°C

Operating pressure:

1,5 - 8 bar

Media:

oiled and unoiled filtered compressed air

Switching time (at 5 bar):

<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:

Standard: 24 V=, 230 V AC, upon request: other voltages

Voltage tolerance:

± 10 %

Protection class (VDE 0470/EN 60529):

IP 65

Service life:

approx. 12 million switching cycles

Power consumption:

Direct current: 3 W, alternating current: 4 VA

Solenoid:

T (plug size 1)

Information:

These valves are generally delivered with coils and plugs!

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName_cleanfilter }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way solenoid valves G 1/4", model series RV20: {{ $t('shop.all.n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelAngezeigt} ) }}
3/2-way solenoid valve, G 1/4", closed (NC), 24 V=
3/2-way solenoid valve, G 1/4", closed (NC), 230 V AC
3/2-way solenoid valve, G 1/4", closed (NC), 12 V=
3/2-way solenoid valve, G 1/4", closed (NC), 24 V AC
3/2-way solenoid valve, G 1/4", open (NO), 24 V=
3/2-way solenoid valve, G 1/4", open (NO), 230 V AC
3/2-way solenoid valve, G 1/4", open (NO), 12 V=
3/2-way solenoid valve, G 1/4", open (NO), 24 V AC
3/2-way solenoid valve, G 1/4", pulse valve, 24 V=
3/2-way solenoid valve, G 1/4", pulse valve, 230 V AC
3/2-way solenoid valve, G 1/4", pulse valve, 12 V=
3/2-way solenoid valve, G 1/4", pulse valve, 24 V AC
