Item group

3/2-way solenoid valves G 1/4", Series SF4000

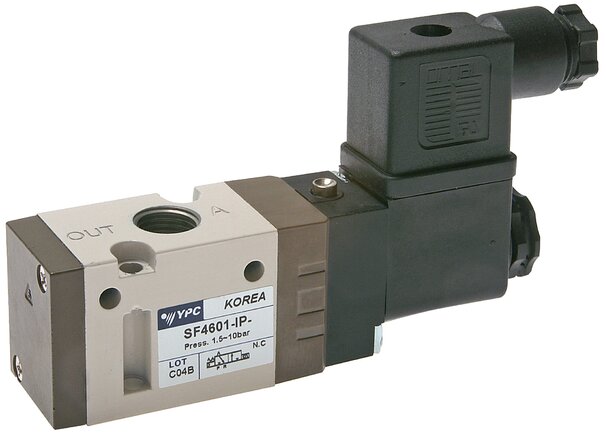

Exemplary representation: 3/2-way solenoid valve with spring return (NC or NO) Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10°C to +60°C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Switching time (at 5 bar):

< 25 ms

Protection class:

IP 65

Structural shape solenoid coil:

M (plug size 1)

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 731) atlas9_seiten/731.pdf
    Directional valves - Overview, function and explanation of 3/2-way valves
