Item group

5/3-way hand lever valves, model series VH

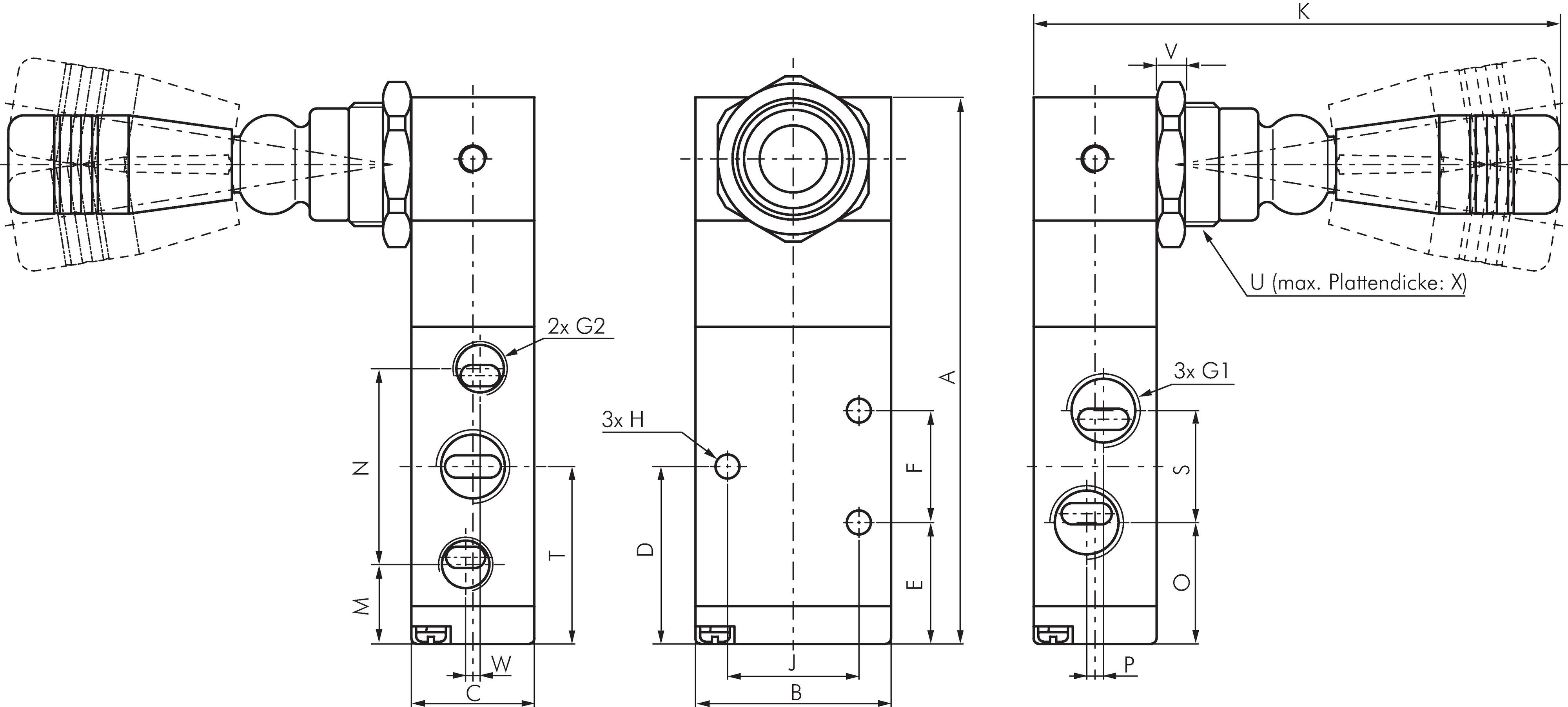

Exemplary representation Exemplary representation Exemplary representation Drawing: 5/3-way hand lever valves Schematic symbol: centre position closed, with spring return Schematic symbol: centre position closed, with detent Schematic symbol: centre position vented, with spring return Schematic symbol: centre position vented, with detent Schematic symbol: centre position ventilated, with spring return Schematic symbol: centre position ventilated, with detent

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5°C to +60°C

Operating pressure:

0 - 8 bar

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName_cleanfilter }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
5/3-way hand lever valves, model series VH: {{ $t('shop.all.n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelAngezeigt} ) }}
5/3-way hand lever valve, G 1/8", Centre position closed, spring return
5/3-way hand lever valve, G 1/4" (exhaust G 1/8"), Centre position closed, spring return
5/3-way hand lever valve, G 1/2", Centre position closed, spring return
5/3-way hand lever valve, G 1/8", Centre position closed, detend
5/3-way hand lever valve, G 1/4" (exhaust G 1/8"), Centre position closed, detend
5/3-way hand lever valve, G 1/2", Centre position closed, detend
5/3-way hand lever valve, G 1/8", Centre position vented, spring return
5/3-way hand lever valve, G 1/4" (exhaust G 1/8"), Centre position vented, spring return
5/3-way hand lever valve, G 1/2", Centre position vented, spring return
5/3-way hand lever valve, G 1/8", Centre position vented, detend
5/3-way hand lever valve, G 1/4" (exhaust G 1/8"), Centre position vented, detend
5/3-way hand lever valve, G 1/2", Centre position vented, detend
5/3-way hand lever valve, G 1/8", Centre position ventilated, spring return
5/3-way hand lever valve, G 1/4" (exhaust G 1/8"), Centre position ventilated, spring return
5/3-way hand lever valve, G 1/2", Centre position ventilated, spring return
5/3-way hand lever valve, G 1/8", Centre position ventilated, detend
5/3-way hand lever valve, G 1/4" (exhaust G 1/8"), Centre position ventilated, detend
5/3-way hand lever valve, G 1/2", Centre position ventilated, detend
