Bearing blocks with bolts (Ø 12 - 25), for compact cylinder UNITOP

Find the right item

Material
for piston Ø [mm]
B [mm]
B1 [mm]
C [mm]
H [mm]
L [mm]
N [mm]
O [mm]
R [mm]
S [mm]
M [mm]

Bearing blocks with bolts (Ø 12 - 25), for compact cylinder UNITOP: 4 of 4 items

BG 12/16
Bearing block f. 12 & 16mm ISO 6431 cylinder, Zinc plated steel (BG 12/16)

Zinc plated steel Zinc plated steel

Bearing block f. 12 & 16mm ISO 6431 cylinder, Zinc plated steel
  • for piston Ø [mm]

    12 & 16

  • B [mm]

    5,5

  • B1 [mm]

    6

  • C [mm]

    15

  • H [mm]

    25

  • L [mm]

    27

Immediately available

2,85 €

BG 20/25

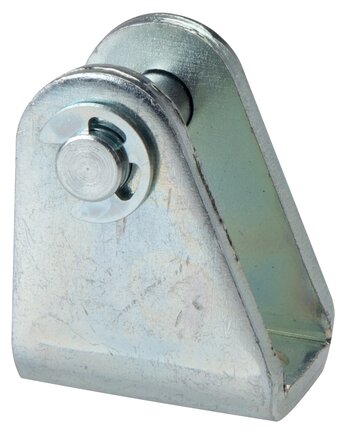

Bearing block f. 20 & 25mm ISO 6431 cylinder, Zinc plated steel (BG 20/25)

Zinc plated steel Zinc plated steel

Bearing block f. 20 & 25mm ISO 6431 cylinder, Zinc plated steel
  • for piston Ø [mm]

    20 & 25

  • B [mm]

    6,6

  • B1 [mm]

    8

  • C [mm]

    20

  • H [mm]

    32

  • L [mm]

    30

Immediately available

4,70 €

Bearing block f. 12 & 16mm ISO 6431 cylinder, 1.4301
  • for piston Ø [mm]

    12 & 16

  • B [mm]

    5,5

  • B1 [mm]

    6

  • C [mm]

    15

  • H [mm]

    25

  • L [mm]

    27

Immediately available

10,78 €

Bearing block f. 20 & 25mm ISO 6431 cylinder, 1.4301
  • for piston Ø [mm]

    20 & 25

  • B [mm]

    6,6

  • B1 [mm]

    8

  • C [mm]

    20

  • H [mm]

    32

  • L [mm]

    30

Immediately available

14,67 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
