Item group

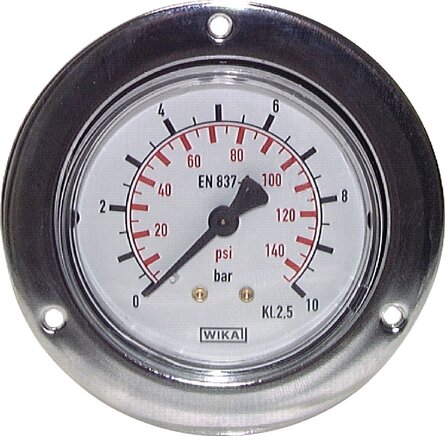

Built-in pressure gauge with large front ring for panel mounting, Class 2,5

Materials:

Housing: black steel, front ring: chromium-plated steel, measuring system and connection: Cu alloy, window: transparent plastic

Connection thread:

G 1/4" *, (Ø 40: G 1/8"), rear side, centrical

Class:

2,5

Temperature range:

-20 to +60 °C

Dial:

1. Scale outside (black), display in bar, 2. scale inside (red), display in PSI

Protection class:

IP 42

Note:

WIKA Type 111.12

Optional:

ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
*with centring pin for profiled seal

Documents:

More information Less information

Filter items

Diameter [mm]
Display range [bar]
Connection thread
Scale division [bar]
Built-in pressure gauge with large front ring for panel mounting, Class 2,5:
20 of 39 articles
built-in pressure gauge (CrNi/Ms), front ring, 40mm, -1 to 0 bar(MSE -140 CR)
MSE -140 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, -1 to 0 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 1 bar(MSE 140 CR)
MSE 140 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 1 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 1,6 bar(MSE 1,640 CR)
MSE 1,640 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 1,6 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 2,5 bar(MSE 2,540 CR)
MSE 2,540 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 2,5 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 4 bar(MSE 440 CR)
MSE 440 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 4 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 6 bar(MSE 640 CR)
MSE 640 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 6 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 10 bar(MSE 1040 CR)
MSE 1040 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 10 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 16 bar(MSE 1640 CR)
MSE 1640 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 16 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 25 bar(MSE 2540 CR)
MSE 2540 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 25 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 40 bar(MSE 4040 CR)
MSE 4040 CR
built-in pressure gauge (CrNi/Ms), front ring, 40mm, 0 to 40 bar
€25.17 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, -1 to 0 bar(MSE -150 CR)
MSE -150 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, -1 to 0 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 1 bar(MSE 150 CR)
MSE 150 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 1 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 1,6 bar(MSE 1,650 CR)
MSE 1,650 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 1,6 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 2,5 bar(MSE 2,550 CR)
MSE 2,550 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 2,5 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 4 bar(MSE 450 CR)
MSE 450 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 4 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 6 bar(MSE 650 CR)
MSE 650 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 6 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 10 bar(MSE 1050 CR)
MSE 1050 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 10 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 16 bar(MSE 1650 CR)
MSE 1650 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 16 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 25 bar(MSE 2550 CR)
MSE 2550 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 25 bar
€26.37 incl. 19 % VAT
Immediately available
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 40 bar(MSE 4050 CR)
MSE 4050 CR
built-in pressure gauge (CrNi/Ms), front ring, 50mm, 0 to 40 bar
€26.37 incl. 19 % VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
