Item group

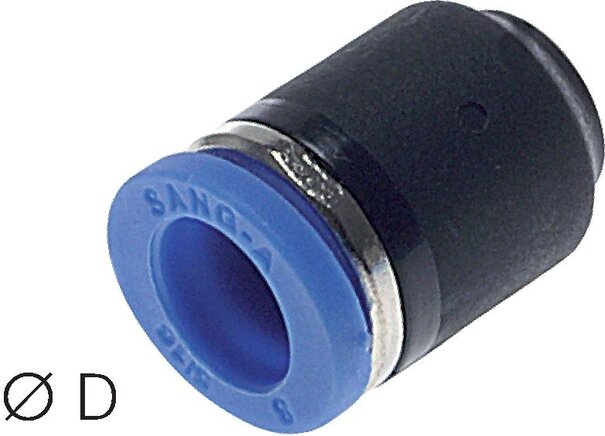

Caps for locking tubes, standard/mini

Materials:

Body: nickel-plated brass, sleeve: PBT, seal: NBR, holding claws: Stainless steel

Temperature range:

-20 to +60 °C

Operating pressure:

-0,95 to 10 bar

Media:

Compressed air, neutral gases

Advantages:

•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
*Operating pressure: 10 bar, 60°C max., plastic body made of PBT

Documents:

More information Less information
Caps for locking tubes, standard/mini:
6 of 6 articles
End caps for 3mm hoses, IQS-Mini(IQSMC 30)
IQSMC 30
End caps for 3mm hoses, IQS-Mini
€1.13 incl. VAT
Immediately available
End caps for 4mm hoses, IQS-Standard(IQSC 40)
IQSC 40
End caps for 4mm hoses, IQS-Standard
€1.43 incl. VAT
Immediately available
End caps for 6mm hoses, IQS-Standard(IQSC 60)
IQSC 60
End caps for 6mm hoses, IQS-Standard
€1.58 incl. VAT
Immediately available
End caps for 8mm hoses, IQS-Standard(IQSC 80)
IQSC 80
End caps for 8mm hoses, IQS-Standard
€1.74 incl. VAT
Immediately available
End caps for 10mm hoses, IQS-Standard(IQSC 100)
IQSC 100
End caps for 10mm hoses, IQS-Standard
€1.96 incl. VAT
Immediately available
End caps for 12mm hoses, IQS-Standard(IQSC 120)
IQSC 120
End caps for 12mm hoses, IQS-Standard
€2.19 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
