Item group

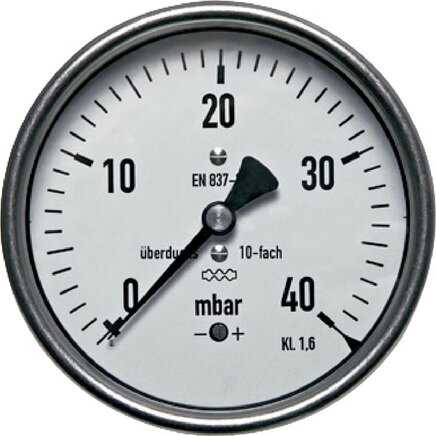

Capsule pressure gauge, horizontal, up to 10-fold overload capacity, mbar
YouTube videos:
Materials:
Housing: 1.4301, measuring system and connection: Cu alloy, window: instrument plate glass
Connection thread:
G 1/2" * (Ø 63: G 1/4" *), back-mounted, centred
Class:
1,6
Temperature range:
Ambience: -20 to +60 °C, measured material: -20 to +80 °C
Zero point correction:
front side
Protection class:
IP 54
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
*with centring pin for profiled seal, **5-fold overpressure safe
Documents:
More information
Filter items
more filters
Capsule pressure gauge, horizontal, up to 10-fold overload capacity, mbar:
20 of 48 articles
MW -60063 MB5CR **
Pressure gauge horizontal 63mm, -0,6 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
deliverable again in ⌀ 4 weeks
MW -40063 MB5CR **
Pressure gauge horizontal 63mm, -0,4 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW -25063 MB5CR **
Pressure gauge horizontal 63mm, -0,25 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW -16063 MB5CR **
Pressure gauge horizontal 63mm, -0,16 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW -10063 MB10CR
Pressure gauge horizontal 63mm, -0,1 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW -6063 MB10CR
Pressure gauge horizontal 63mm, -0,06 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW -4063 MB10CR
Pressure gauge horizontal 63mm, -0,04 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW -2563 MB5CR **
Pressure gauge horizontal 63mm, -0,025 bar to 0 bar mbar, G 1/4"
€140.62
incl. VAT
MW 2563 MB5CR **
Pressure gauge horizontal 63mm, 0 to 25 mbar, G 1/4"
€140.62
incl. VAT
MW 4063 MB10CR
Pressure gauge horizontal 63mm, 0 to 40 mbar, G 1/4"
€140.62
incl. VAT
MW 6063 MB10CR
Pressure gauge horizontal 63mm, 0 to 60 mbar, G 1/4"
€140.62
incl. VAT
MW 10063 MB10CR
Pressure gauge horizontal 63mm, 0 to 100 mbar, G 1/4"
€140.62
incl. VAT
MW 16063 MB5CR **
Pressure gauge horizontal 63mm, 0 to 160 mbar, G 1/4"
€140.62
incl. VAT
MW 25063 MB5CR **
Pressure gauge horizontal 63mm, 0 to 250 mbar, G 1/4"
€140.62
incl. VAT
MW 40063 MB5CR **
Pressure gauge horizontal 63mm, 0 to 400 mbar, G 1/4"
€140.62
incl. VAT
MW 60063 MB5CR **
Pressure gauge horizontal 63mm, 0 to 600 mbar, G 1/4"
€140.62
incl. VAT
MW -600100 MB5CR **
Pressure gauge horizontal 100mm, -0,6 bar to 0 bar mbar, G 1/2"
€184.72
incl. VAT
MW -400100 MB5CR **
Pressure gauge horizontal 100mm, -0,4 bar to 0 bar mbar, G 1/2"
€184.72
incl. VAT
MW -250100 MB5CR **
Pressure gauge horizontal 100mm, -0,25 bar to 0 bar mbar, G 1/2"
€184.72
incl. VAT
MW -160100 MB5CR **
Pressure gauge horizontal 100mm, -0,16 bar to 0 bar mbar, G 1/2"
€184.72
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
