Item group

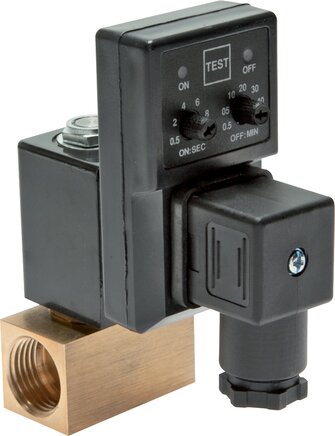

Clock controlled steam trap

Function:

Solenoid valve with large opening and pre-programmed timer. The opening time can be continuously adjusted between 0.5 and 10 seconds, the cycle can also be continuously adjusted between every 30 seconds to 45 minutes.

Materials:

Valve: brass, seals: FKM, pulse generator: plastic

Temperature range:

+1 to +50 °C

Operating pressure:

0 to 16 bar

Power supply:

230 V AC

Voltage tolerance:

± 10 %

Protection class:

IP 65
*From thread connector to thread connector, **Middle thread connector - top level timer

Documents:

More information Less information

Filter items

Max. number of valve spaces
Please select
Clock controlled steam trap:
2 of 2 articles
Steam trap, G 1/4", clock-controlled, 230 V AC(KONDENS 14)
KONDENS 14
Steam trap, G 1/4", clock-controlled, 230 V AC
€128.70 incl. VAT
Immediately available
Steam trap, G 1/2", clock-controlled, 230 V AC(KONDENS 12)
KONDENS 12
Steam trap, G 1/2", clock-controlled, 230 V AC
€128.70 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
