Control cable, flexible, YSLY-JZ

Description

Description:

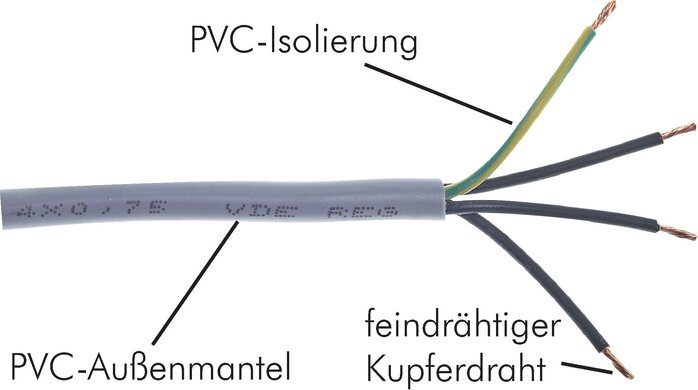

PVC control cable, according to VDE 0250, 0271, 0281, 0293, grey PVC outer sheath, continuous figure imprint on the wires in accordance with VDE 0293, protective earthing conductor green / yellow, PVC wire insulation

Suitable:
As a connection line for tool machines, production lines, control devices, control consoles, in plant engineering, power plants, in heating and air-conditioning technologies, in cooling systems, in office machinery and data processing systems. Installation in dry, moist and wet rooms, however not outside. Mostly resistant to oils, greases and chemicals.

Operating voltage:
Max. 500 V

Temperature range:
laid permanently: -20°C bis +80°C, laid movable: -5°C to +80°C

Roll length:
50 m

*incl. protective earthing conductor

Find the right item

Wire cross-section [mm²]
Wire count* [PCE]

Control cable, flexible, YSLY-JZ: 9 of 9 items

Flexible PVC control cable 3x0,75mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    0,75

  • Wire count* [PCE]

    3

Immediately available

1,29 €

Flexible PVC control cable 4x0,75mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    0,75

  • Wire count* [PCE]

    4

Immediately available

1,40 €

Flexible PVC control cable 5x0,75mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    0,75

  • Wire count* [PCE]

    5

Immediately available

2,41 €

Flexible PVC control cable 3x1,50mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    1,50

  • Wire count* [PCE]

    3

Immediately available

2,10 €

Flexible PVC control cable 4x1,50mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    1,50

  • Wire count* [PCE]

    4

Immediately available

3,26 €

Flexible PVC control cable 5x1,50mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    1,50

  • Wire count* [PCE]

    5

Immediately available

4,03 €

Flexible PVC control cable 3x2,50mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    2,50

  • Wire count* [PCE]

    3

Immediately available

4,17 €

Flexible PVC control cable 4x2,50mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    2,50

  • Wire count* [PCE]

    4

Immediately available

4,44 €

Flexible PVC control cable 5x2,50mm² (YSLY-JZ)
  • Wire cross-section [mm²]

    2,50

  • Wire count* [PCE]

    5

Immediately available

4,83 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
