Item group
Coupling plugs with hose screw connection and bulkhead thread, NW 2,7
YouTube videos:
Materials:
Body: brass, nickel-plated brass or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Flow*:
165 l/min (Option -BA: 150 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (20, 91), Walther (06-003), Festo (KD2/KS2), IMI-Norgren (232), Aventics (CP1-NW 2,7)
Optional:
with valve for double-sided shut-off -BA
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
**Names and designations are partly trademarks of the manufacturers entered.
Documents:
More information
Filter items
Coupling plugs with hose screw connection and bulkhead thread, NW 2,7:
8 of 8 articles
KSSS 3 NW2,7

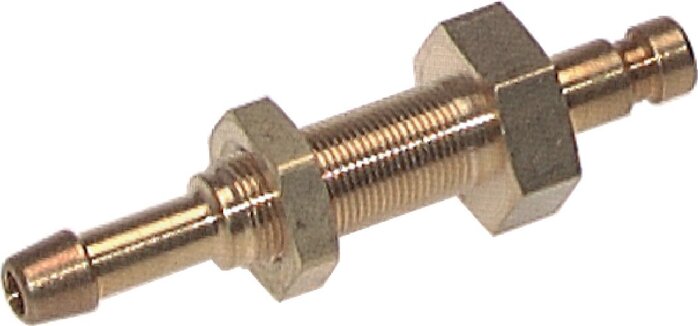

Bulkhead coupling plug (NW2,7) 3mm hose, Brass
€9.73
incl. VAT
KSSS 4 NW2,7
Bulkhead coupling plug (NW2,7) 4mm hose, Brass
€9.73
incl. VAT
KSSS 3 NW2,7 MSV

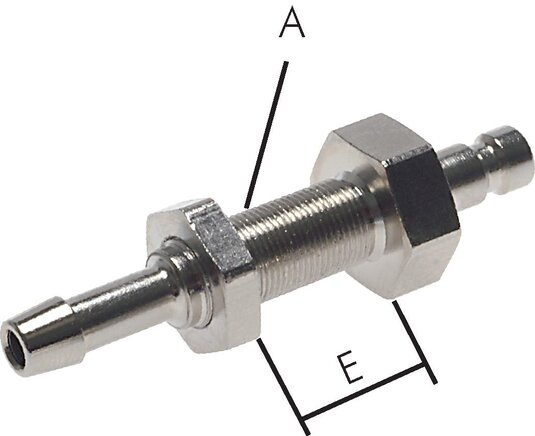

Bulkhead coupling plug (NW2,7) 3mm hose, Nickel-plated brass
€10.70
incl. VAT
KSSS 4 NW2,7 MSV
Bulkhead coupling plug (NW2,7) 4mm hose, Nickel-plated brass
€11.47
incl. VAT
KSSS 3 NW2,7 BA
Bulkhead coupling plug (NW2,7) 3mm hose, Brass
€32.02
incl. VAT
KSSS 4 NW2,7 BA
Bulkhead coupling plug (NW2,7) 4mm hose, Brass
€34.55
incl. VAT
KSSS 3 NW2,7 MSV BA
Bulkhead coupling plug (NW2,7) 3mm hose, Nickel-plated brass
€31.64
incl. VAT
KSSS 4 NW2,7 MSV BA
Bulkhead coupling plug (NW2,7) 4mm hose, Nickel-plated brass
€32.51
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
