Item group

Cylinder switches - T-groove (5mm, continuous), Type A

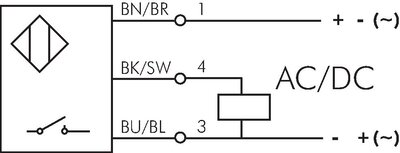

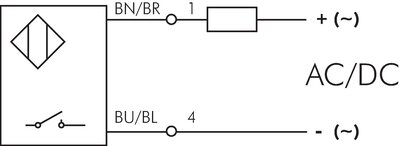

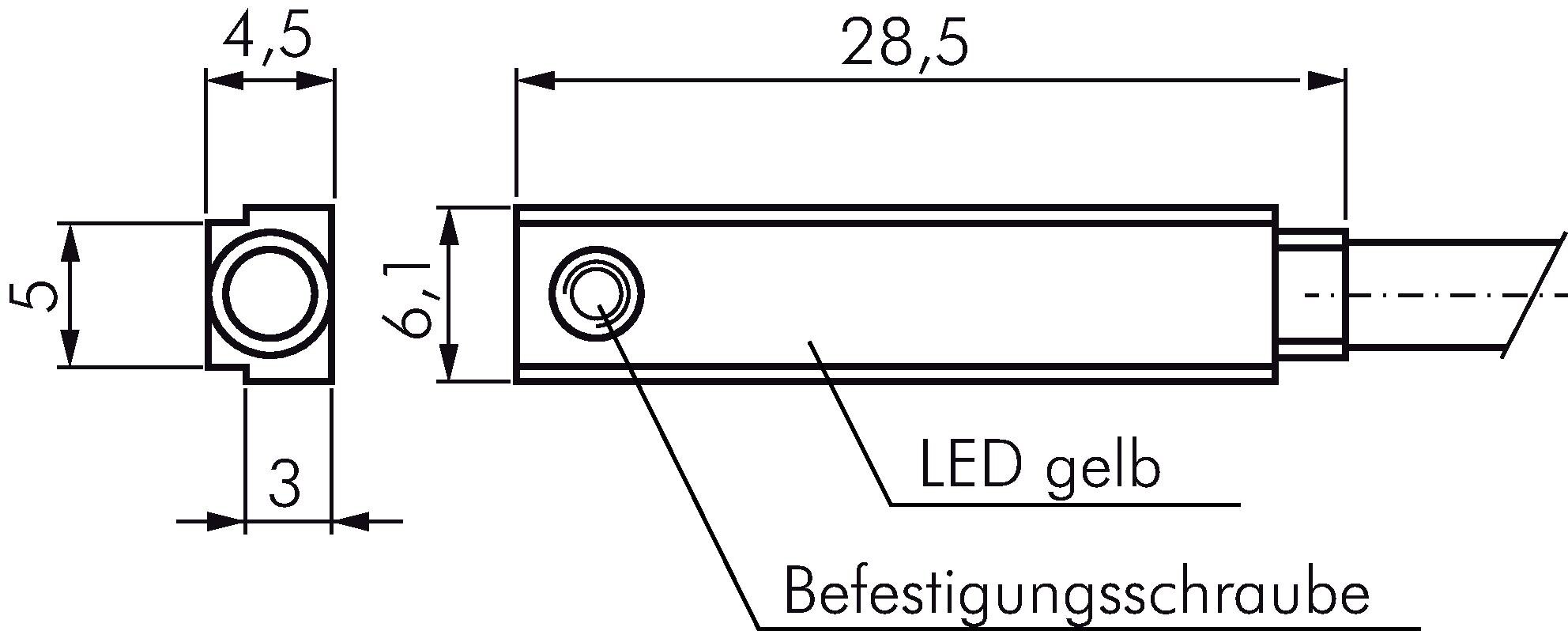

Exemplary representation Drawing: T-groove Drawing: Sensor dimensions Schematic symbol: 2-wire reed sensor Schematic symbol: 3-wire reed sensor Schematic symbol: fully electronic sensor Schematic symbol: M 8 plug (3-pin)

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Body: plastic, threaded part: brass, screw: Stainless steel

Connecting line:

PUR cable

Protection class:

IP 67

Temperature range:

-20°C to +70°C

Note:

The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the T-groove of the cylinder and locking it using the threaded rod.

Suitable:

For cylinders with continuous T groove (5 mm)

Advantages:

•no mounting material required,
•one switch fits many products of most European brands (e.g. Festo).

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Cylinder switches - T-groove (5mm, continuous), Type A:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

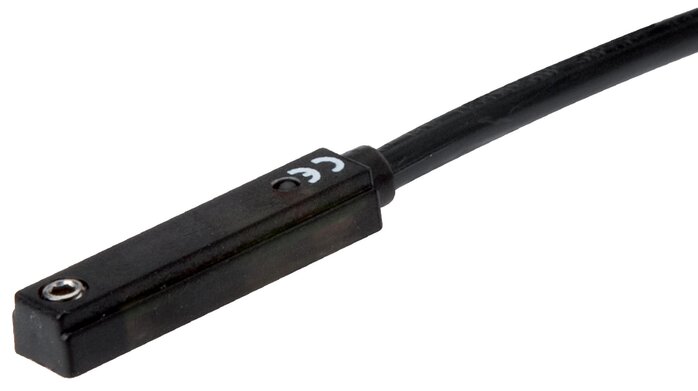

T-groove (5mm) cylinder switch, 2-wire Reed sensor
ZSA 12
T-groove (5mm) cylinder switch, 2-wire Reed sensor
{{ /* TODO irgendwann: Vue draus machen */ }} 29,18€ incl. VAT
29,18€ incl. VAT
T-groove (5mm) cylinder switch, 2-wire Reed sensor
ZSA 12-M8
T-groove (5mm) cylinder switch, 2-wire Reed sensor
{{ /* TODO irgendwann: Vue draus machen */ }} 34,22€ incl. VAT
34,22€ incl. VAT
T-groove (5mm) cylinder switch, 3-wire reed sensor
ZSA 13
T-groove (5mm) cylinder switch, 3-wire reed sensor
{{ /* TODO irgendwann: Vue draus machen */ }} 33,40€ incl. VAT
33,40€ incl. VAT
T-groove (5mm) cylinder switch, 3-wire reed sensor
ZSA 13-M8
T-groove (5mm) cylinder switch, 3-wire reed sensor
{{ /* TODO irgendwann: Vue draus machen */ }} 37,01€ incl. VAT
37,01€ incl. VAT
T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection)
ZSA 33
T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection)
{{ /* TODO irgendwann: Vue draus machen */ }} 65,72€ incl. VAT
65,72€ incl. VAT
T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection)
ZSA 33-M8
T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection)
{{ /* TODO irgendwann: Vue draus machen */ }} 69,33€ incl. VAT
69,33€ incl. VAT
