  4. Elastomer compensators with malleable cast iron connections, PN 16
Item group

Elastomer compensators with malleable cast iron connections, PN 16

Version:

elastic, form-pressed bellows, reinforcement carrier made of synthetic fibres, connections screwed on both the sides

Equalising capacity:

axial (compression/extension), lateral (lateral offset), angular (angular deviation)

Materials:

Bellows: EPDM (hot water, acid and alkalis resistant), thread connections: Malleable cast iron, galvanised zinc plated, flat seal: Aramide NBR

Temperature range:

max. +110 °C (depending on operating pressure)

Operating pressure:

-1 to 16 bar (from +60°C: 10 bar, from +100°C: 6 bar), burst pressure: 50 bar (For intermittent loading, the max. operating pressure should be set approx. 30% lower)

Warning:

When installing the compensator, it is urged to follow the assembly instructions in all cases!

Optional:

Bellows from NBR, oil resistant -B

Documents:

More information Less information

Filter items

D
Please select
D1
Please select
D2
Please select
H
Please select
more filters
Elastomer compensators with malleable cast iron connections, PN 16:
13 of 13 articles
Compensator, DN32, R 1-1/4" (AG)-R 1-1/4" (AG), EPDM(KOM 32 AG)
KOM 32 AG
Compensator, DN32, R 1-1/4" (AG)-R 1-1/4" (AG), EPDM
€929.45 incl. VAT
Immediately available
Kompensator EPDM/Edelst. bds. R 1 1/4" AG(KOM 32 AG ES)
KOM 32 AG ES
Kompensator EPDM/Edelst. bds. R 1 1/4" AG
€476.00 incl. VAT
Immediately available
Compensator, DN40, R 1-1/2" (AG)-R 1-1/2" (AG), EPDM(KOM 40 AG)
KOM 40 AG
Compensator, DN40, R 1-1/2" (AG)-R 1-1/2" (AG), EPDM
€929.45 incl. VAT
Immediately available

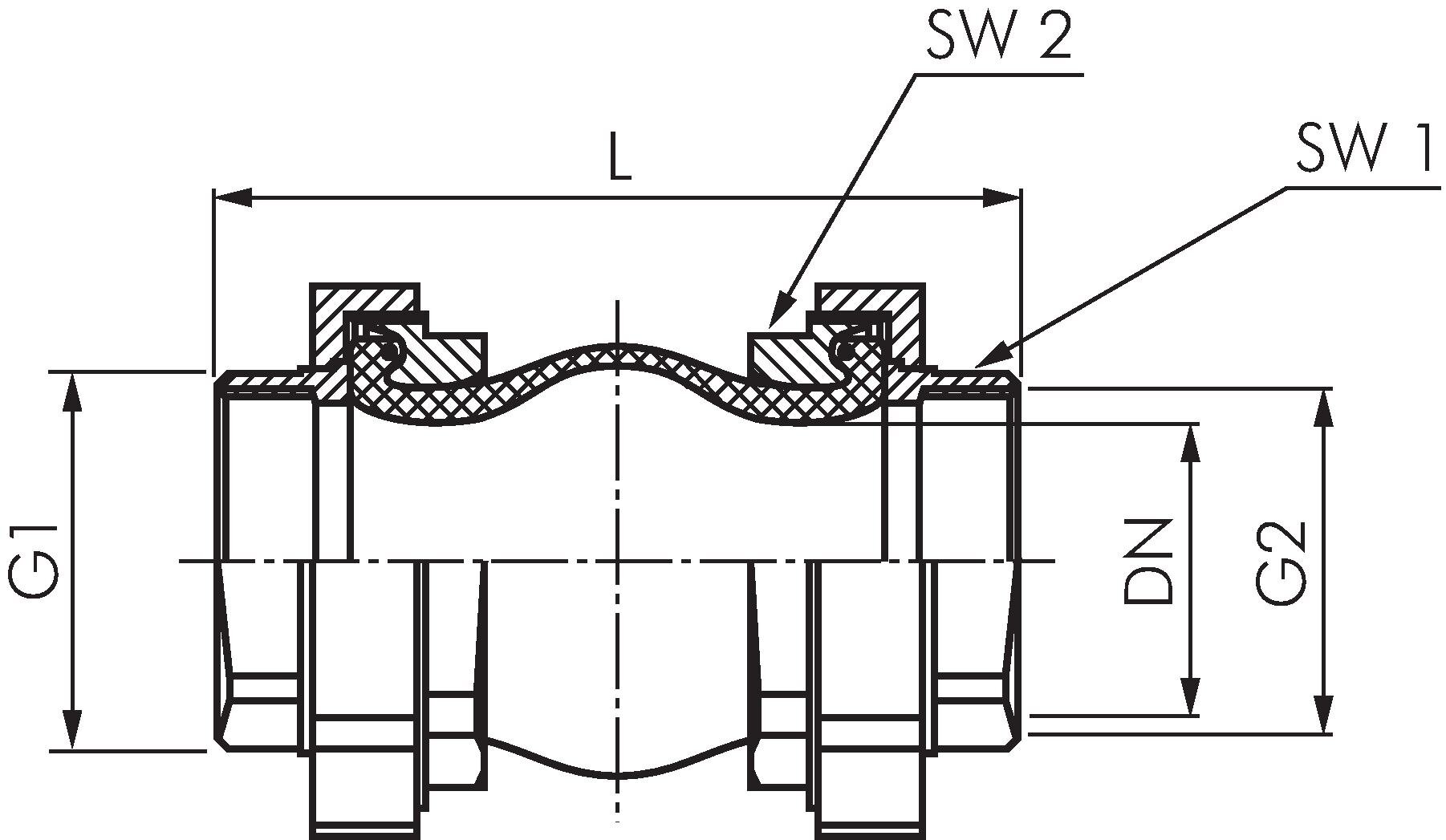

Compensator, DN32, G 1-1/4" (IG)-G 1-1/4" (IG), EPDM(KOM 32 IG)
KOM 32 IG
Compensator, DN32, G 1-1/4" (IG)-G 1-1/4" (IG), EPDM
€929.45 incl. VAT
Immediately available
Compensator, DN40, G 1-1/2" (IG)-G 1-1/2" (IG), EPDM(KOM 40 IG)
KOM 40 IG
Compensator, DN40, G 1-1/2" (IG)-G 1-1/2" (IG), EPDM
€929.45 incl. VAT
Immediately available

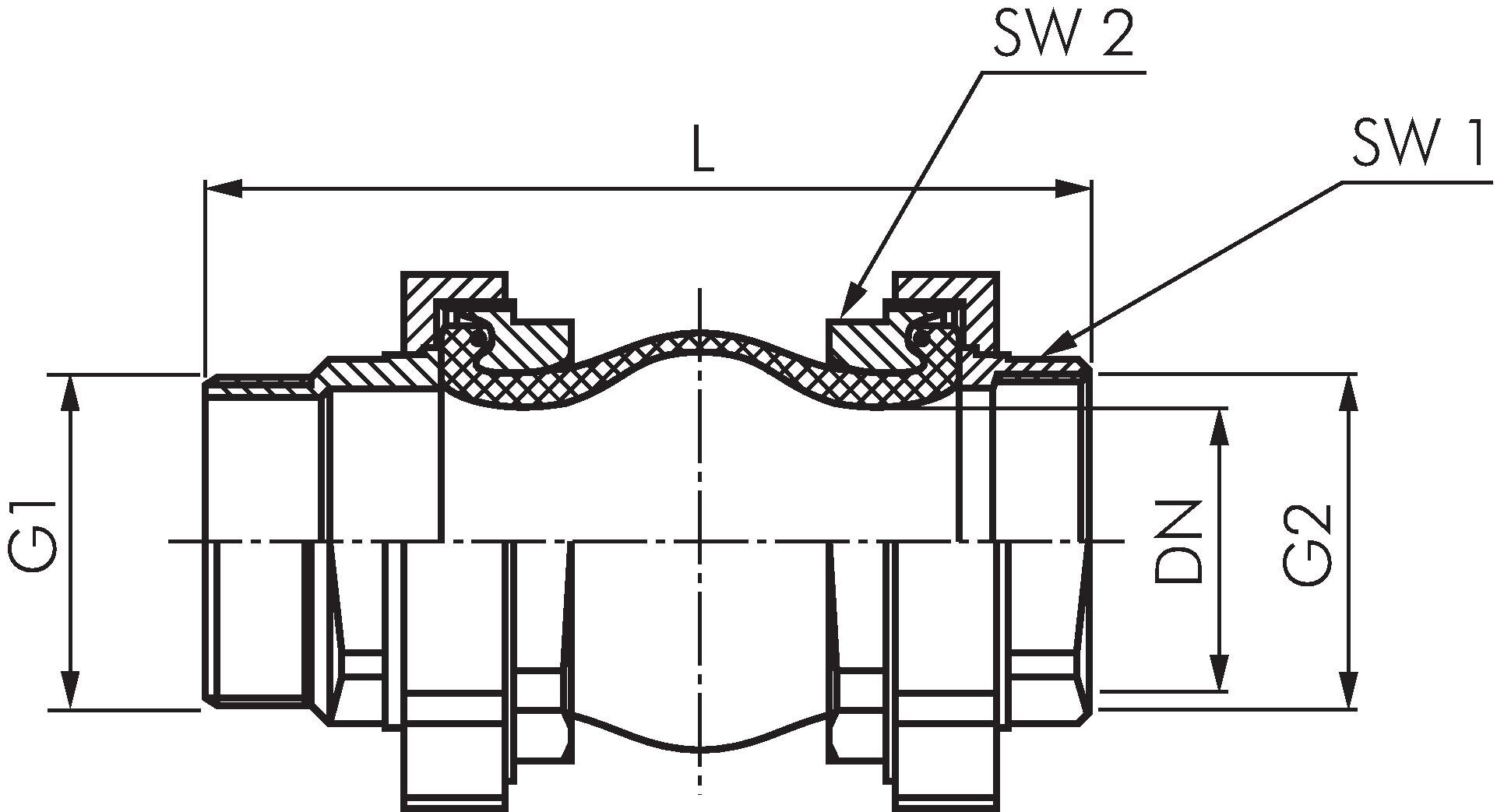

Compensator, DN32, R 1-1/4" (AG)-G 1-1/4" (IG), EPDM(KOM 32 AGIG)
KOM 32 AGIG
Compensator, DN32, R 1-1/4" (AG)-G 1-1/4" (IG), EPDM
€929.45 incl. VAT
Immediately available
Compensator, DN40, R 1-1/2" (AG)-G 1-1/2" (IG), EPDM(KOM 40 AGIG)
KOM 40 AGIG
Compensator, DN40, R 1-1/2" (AG)-G 1-1/2" (IG), EPDM
€929.45 incl. VAT
Immediately available
Compensator, DN32, R 1-1/4" (AG)-R 1-1/4" (AG), NBR(KOM 32 AG-B)
KOM 32 AG-B
Compensator, DN32, R 1-1/4" (AG)-R 1-1/4" (AG), NBR
€929.45 incl. VAT
Immediately available
Compensator, DN40, R 1-1/2" (AG)-R 1-1/2" (AG), NBR(KOM 40 AG-B)
KOM 40 AG-B
Compensator, DN40, R 1-1/2" (AG)-R 1-1/2" (AG), NBR
€929.45 incl. VAT
deliverable again in ⌀ 3 weeks
Compensator, DN32, G 1-1/4" (IG)-G 1-1/4" (IG), NBR(KOM 32 IG-B)
KOM 32 IG-B
Compensator, DN32, G 1-1/4" (IG)-G 1-1/4" (IG), NBR
€929.45 incl. VAT
Immediately available
Compensator, DN40, G 1-1/2" (IG)-G 1-1/2" (IG), NBR(KOM 40 IG-B)
KOM 40 IG-B
Compensator, DN40, G 1-1/2" (IG)-G 1-1/2" (IG), NBR
€929.45 incl. VAT
Immediately available
Compensator, DN32, R 1-1/4" (AG)-G 1-1/4" (IG), NBR(KOM 32 AGIG-B)
KOM 32 AGIG-B
Compensator, DN32, R 1-1/4" (AG)-G 1-1/4" (IG), NBR
€929.45 incl. VAT
Immediately available
Compensator, DN40, R 1-1/2" (AG)-G 1-1/2" (IG), NBR(KOM 40 AGIG-B)
KOM 40 AGIG-B
Compensator, DN40, R 1-1/2" (AG)-G 1-1/2" (IG), NBR
€929.45 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
