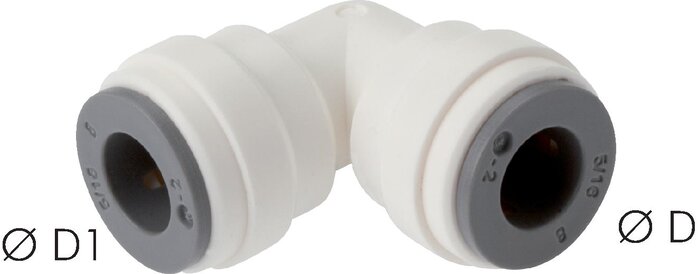

Elbow push in connectors (also reducing), LE (inch)

Description

Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: EPDM (FDA certified)

Temperature range:
0°C bis +65°C

Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

Approvals:
NSF / ANSI 61, materials acc. to FDA

Advantages:
•available for metric and imperial hoses, G thread, •R-thread and NPT-thread available, •compatible with many other manufacturers

*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

Find the right item

D
D1
Operating pressure [bar]

Elbow push in connectors (also reducing), LE (inch): 11 of 11 items

Angle push in fitting5/32" (3,97 mm)-5/32" (3,97 mm), IQS-LE (EPDM-seal)
  • D

    5/32" (3.97 mm)

  • D1

    5/32" (3.97 mm)

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,55 €

Angle push in fitting3/16" (4,76 mm)-3/16" (4,76 mm), IQS-LE (EPDM-seal)
  • D

    3/16" (4.76 mm)

  • D1

    3/16" (4.76 mm)

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,75 €

Angle push in fitting1/4" (6,35 mm)-3/16" (4,76 mm), IQS-LE (EPDM-seal)
  • D

    1/4" (6,35 mm)

  • D1

    3/16" (4.76 mm)

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,75 €

Angle push in fitting1/4" (6,35 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
  • D

    1/4" (6,35 mm)

  • D1

    1/4" (6,35 mm)

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,65 €

Angle push in fitting5/16" (7,94 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
  • D

    5/16" (7.94 mm)

  • D1

    1/4" (6,35 mm)

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,75 €

Angle push in fitting5/16" (7,94 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)
  • D

    5/16" (7.94 mm)

  • D1

    5/16" (7.94 mm)

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,84 €

Angle push in fitting3/8" (9,52 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
  • D

    3/8" (9.52 mm)

  • D1

    1/4" (6,35 mm)

  • Operating pressure [bar]

    -0.95 to 11

Immediately available

1,94 €

Angle push in fitting3/8" (9,52 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)
  • D

    3/8" (9.52 mm)

  • D1

    5/16" (7.94 mm)

  • Operating pressure [bar]

    -0.95 to 11

Immediately available

2,04 €

Angle push in fitting3/8" (9,52 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)
  • D

    3/8" (9.52 mm)

  • D1

    3/8" (9.52 mm)

  • Operating pressure [bar]

    -0.95 to 11

Immediately available

2,04 €

Angle push in fitting1/2" (12,7 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)
  • D

    1/2" (12.7 mm)

  • D1

    3/8" (9.52 mm)

  • Operating pressure [bar]

    -0.95 to 11

Immediately available

2,23 €

Angle push in fitting1/2" (12,7 mm)-1/2" (12,7 mm), IQS-LE (EPDM-seal)
  • D

    1/2" (12.7 mm)

  • D1

    1/2" (12.7 mm)

  • Operating pressure [bar]

    -0.95 to 11

Immediately available

2,33 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
