Item group

Elbow screw connections

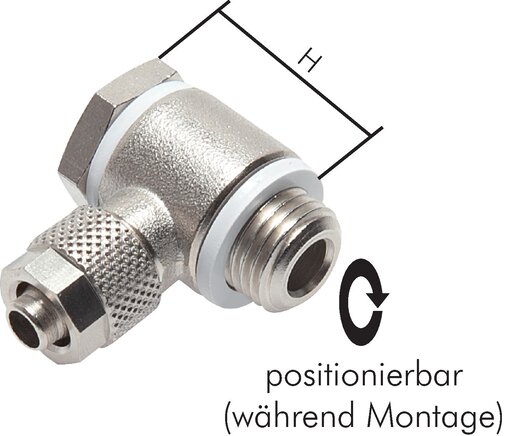

Name: Elbow screw connection M 5-4,3x3mm, Nickel-plated brass, Banjo bolt
Brand: Landefeld
SKU: LCK 53 MSV
Price: 5.16 EUR
Availability: InStock

Exemplaire exposé: Raccord à vis angulaire CK (vis creuse) avec filetage cylindrique, laiton nickelé

Note:

Banjo bolt, banjo and seals are supplied unassembled

Nickel-plated brass type

Operating pressure:

-0.95 to 20 bar

Temperature range:

-10°C to max. +70°C

aluminium type

Operating pressure:

-0.99 to 15 bar

Temperature range:

-15°C to max. +70°C

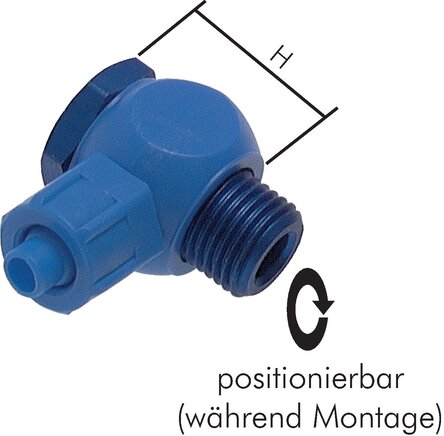

Type plastic (POM)

Operating pressure:

-0.99 to 10 bar

Temperature range:

-10°C to max. +60°C

*Zinc-plated steel banjo bolt, **colour black

Documents:

Catalogue page Atlas 9 (Page 100) (PDF)

More information

Elbow screw connections:

20 of 39 articles

LCK 53 MSV

Elbow screw connection M 5-4,3x3mm, Nickel-plated brass, Banjo bolt

€5.16 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	M 5	4,3x3	14,0

LCK 553 MSV

Elbow screw connection M 5-5x3mm, Nickel-plated brass, Banjo bolt

€4.82 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	M 5	5x3	13,5

LCK 54 MSV

Elbow screw connection M 5-6x4mm, Nickel-plated brass, Banjo bolt

€3.42 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	M 5	6x4	14,0

LCK 183 MSV

Elbow screw connection G 1/8"-4,3x3mm, Nickel-plated brass, Banjo bolt

€5.64 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/8"	4,3x3	22,6

LCK 1853 MSV

Elbow screw connection G 1/8"-5x3mm, Nickel-plated brass, Banjo bolt

€8.25 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/8"	5x3	20,5

LCK 184 MSV

Elbow screw connection G 1/8"-6x4mm, Nickel-plated brass, Banjo bolt

€3.94 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/8"	6x4	22,6

LCK 186 MSV

Elbow screw connection G 1/8"-8x6mm, Nickel-plated brass, Banjo bolt

€4.89 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/8"	8x6	22,6

LCK 188 MSV

Elbow screw connection G 1/8"-10x8mm, Nickel-plated brass, Banjo bolt

€5.36 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/8"	10x8	22,6

LCK 144 MSV

Elbow screw connection G 1/4"-6x4mm, Nickel-plated brass, Banjo bolt

€5.60 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/4"	6x4	22,8

LCK 146 MSV

Elbow screw connection G 1/4"-8x6mm, Nickel-plated brass, Banjo bolt

€6.09 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/4"	8x6	22,8

LCK 148 MSV

Elbow screw connection G 1/4"-10x8mm, Nickel-plated brass, Banjo bolt

€6.21 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/4"	10x8	22,8

LCK 384 MSV

Elbow screw connection G 3/8"-6x4mm, Nickel-plated brass, Banjo bolt

€6.85 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 3/8"	6x4	23,6

LCK 386 MSV

Elbow screw connection G 3/8"-8x6mm, Nickel-plated brass, Banjo bolt

€6.90 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 3/8"	8x6	23,6

LCK 388 MSV

Elbow screw connection G 3/8"-10x8mm, Nickel-plated brass, Banjo bolt

€7.20 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 3/8"	10x8	29,0

LCK 389 MSV

Elbow screw connection G 3/8"-11,6x9mm, Nickel-plated brass, Banjo bolt

€9.35 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 3/8"	11,6x9	26,0

LCK 3810 MSV

Elbow screw connection G 3/8"-12x10mm, Nickel-plated brass, Banjo bolt

€13.20 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 3/8"	12x10	28,0

LCK 126 MSV

Elbow screw connection G 1/2"-8x6mm, Nickel-plated brass, Banjo bolt

€10.33 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/2"	8x6	33,5

LCK 128 MSV

Elbow screw connection G 1/2"-10x8mm, Nickel-plated brass, Banjo bolt

€11.71 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/2"	10x8	33,5

LCK 1210 MSV

Elbow screw connection G 1/2"-12x10mm, Nickel-plated brass, Banjo bolt

€16.62 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Nickel-plated brass	G 1/2"	12x10	33,5

LCK 53 A *

Elbow screw connection M 5-4,3x3mm, Aluminium, Banjo bolt

€6.05 incl. VAT

Quantity

pcs

Immediately available

Material	Screw-in thread	Hose diameter (outer x inner) [mm]	H [mm]
Aluminium	M 5	4,3x3	16,0

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
