Item group

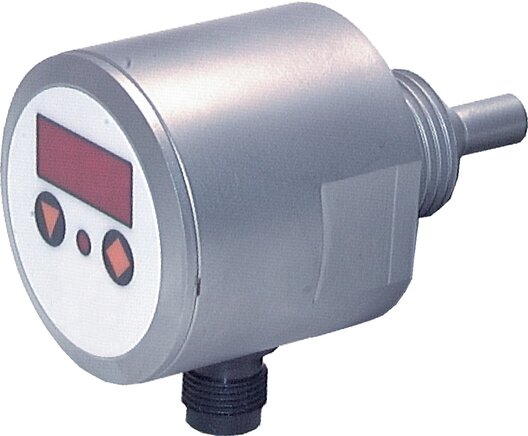

Electronic temperature switch, -20°C to +120°C (will be discontinued)
Materials:
Body: 1.4404, display: plastic, parts coming in contact with the substance being measured: 1.4404
Display:
3-digit LED display, height of digits 7 mm
Temperature range:
Environment: -20 to +50 °C
Measurement range:
-20 to +120 °C
Protection class:
IP 65
Power supply:
19,2 to 28,8 V (DC)
Power input:
50 mA
Electrical connection:

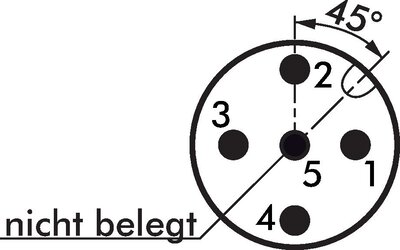

M12 connector, A-coded, 5-pole (DIN EN 61076-2-101) (Plug)
Control output (PNP):
1 switching output (normally open, normally closed, window and hysteresis freely adjustable), max. 300 mA (DC)
Switching accuracy:
± 0.5°C (between -10°C and +85°C, else: ± 2°C)
Operating pressure at the sensor:
max. 80 bar
Documents:
More information
Electronic temperature switch, -20°C to +120°C (will be discontinued):
2 of 2 articles
TSE 12 ES
Electronic temperature switch G 1/2"
€450.63
incl. VAT
TSE 34 ES
Electronic temperature switch G 3/4"
€450.63
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
