Item group

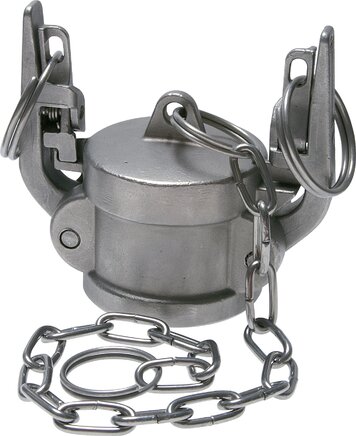

End caps for safety locking device for quick action chuck, Type DC
YouTube videos:
Function:
A safety rapid locking mechanism integrated in the hand levers locks the coupling in the coupled state and this is fully automatic. The coupling can only be opened by manually unlocking the safety lever (2-1/2" and 6" with unlocking pins). All quick action chucks(conforming to the MIL-C-27487 standard) can be used as plugs.
Materials:
Body: stainless steel 1.4408, seal: NBR, handle, ring and chain: Stainless steel
Temperature range:
-10 to +80 °C
Advantages:
•coupling is automatically secured in the coupled position,
•safety pins cannot be lost,
•full throughway,
• low pressure loss,
•also suitable for solids as there are no internal valves,
•dimensions worldwide standardised in accordance with MIL-C-27487
•safety pins cannot be lost,
•full throughway,
• low pressure loss,
•also suitable for solids as there are no internal valves,
•dimensions worldwide standardised in accordance with MIL-C-27487
Documents:
More information
Filter items
more filters
End caps for safety locking device for quick action chuck, Type DC:
8 of 8 articles
KLDV 10 ES-S
Safety Kamlock end cap (DC) 1", SS
€72.60
incl. VAT
KLDV 114 ES-S
Safety Kamlock end cap (DC) 1-1/4", SS
€92.99
incl. VAT
KLDV 112 ES-S
Safety Kamlock end cap (DC) 1-1/2", SS
€80.27
incl. VAT
KLDV 20 ES-S
Safety Kamlock end cap (DC) 2", SS
€105.92
incl. VAT
KLDV 212 ES-S
Safety Kamlock end cap (DC) 2-1/2", SS
€133.46
incl. VAT
KLDV 30 ES-S
Safety Kamlock end cap (DC) 3", SS
€147.68
incl. VAT
KLDV 40 ES-S
Safety Kamlock end cap (DC) 4", SS
€192.53
incl. VAT
KLDV 60 ES-S
Safety Kamlock end cap (DC) 6", SS
€509.83
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
