Item group
Filling units (start-up valves with 3/2-way valve) - Futura, up to 9000 l/min
Materials:
Body: PA 66 GF60, cover: POM, seals: NBR
Temperature range:
-10 to +50 °C
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•easy assembly of single components within a model series using coupling kits
Input pressure:
2.5 - 10 bar (pneumatically operated: 2.5 - 16 bar, series 0 (pneumatically operated: 2.5 - 12 bar)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Power consumption:
2,5 W / 3 VA (50 Hz)
Protection class:
IP 65 (plug size 0C)
Function:

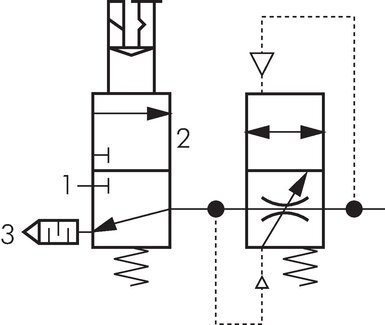

The machines are allowed to breathe gradually via an orifice. Once the pressure attains a value of approx. 50% of the input pressure and the cylinders have gradually moved into their basic settings, the start-up valve switches over to maximum throughway. The speed of the pressure build-up can be controlled using an adjustment screw. It is turned on via a 3/2-way valve.
Scope of delivery:
Filling unit including silencer in exhaust thread
Documents:
More information
Filling units (start-up valves with 3/2-way valve) - Futura, up to 9000 l/min:
20 of 29 articles
BEFULL 014 F 24V=
FUTURA Filling unit, electrically operated, G 1/4", Futura 0
€179.06
incl. VAT
BEFULL 014 F 230V
FUTURA Filling unit, electrically operated, G 1/4", Futura 0
€179.06
incl. VAT
BEFULL 014 F 115V
FUTURA Filling unit, electrically operated, G 1/4", Futura 0
€181.23
incl. VAT
Not in stock
€172.42
incl. VAT
BEFULL 14 F 24V=
FUTURA Filling unit, electrically operated, G 1/4", Futura 1
€206.35
incl. VAT
BEFULL 38 F 24V=
FUTURA Filling unit, electrically operated, G 3/8", Futura 1
€206.35
incl. VAT
BEFULL 14 F 230V
FUTURA Filling unit, electrically operated, G 1/4", Futura 1
€206.35
incl. VAT
BEFULL 38 F 230V
FUTURA Filling unit, electrically operated, G 3/8", Futura 1
€206.35
incl. VAT
BEFULL 14 F 115V
FUTURA Filling unit, electrically operated, G 1/4", Futura 1
€208.86
incl. VAT
Not in stock
BEFULL 38 F 115V
FUTURA Filling unit, electrically operated, G 3/8", Futura 1
€208.86
incl. VAT
€208.80
incl. VAT
€208.80
incl. VAT
BEFULL 382 F 24V=
FUTURA Filling unit, electrically operated, G 3/8", Futura 2
€236.07
incl. VAT
BEFULL 12 F 24V=
FUTURA Filling unit, electrically operated, G 1/2", Futura 2
€236.07
incl. VAT
BEFULL 382 F 230V
FUTURA Filling unit, electrically operated, G 3/8", Futura 2
€236.07
incl. VAT
BEFULL 12 F 230V
FUTURA Filling unit, electrically operated, G 1/2", Futura 2
€236.07
incl. VAT
BEFULL 382 F 115V
FUTURA Filling unit, electrically operated, G 3/8", Futura 2
€238.95
incl. VAT
Not in stock
BEFULL 12 F 115V
FUTURA Filling unit, electrically operated, G 1/2", Futura 2
€238.95
incl. VAT
€254.15
incl. VAT
€254.15
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
