Item group

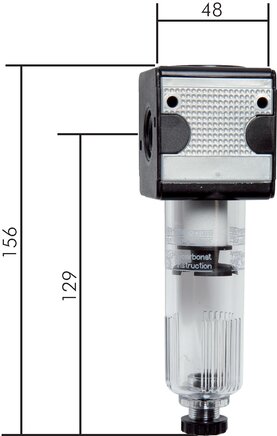

Filter - Multifix model series 1, 2000 l/min

Version:

Filtering using the centrifugal principal and sintered filter

Materials:

Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: polycarbonate

Temperature range:

-10 to +60 °C

Pore width in the filter:

5 µm (model series 5: 40 µm)

Condensate draining:

semi-automatic**

Media:

Compressed air, neutral gases

Advantages:

•Easy assembly of individual components using coupling kits within a model series and thread size.

Input pressure:

1.5 - 16 bar (with metal bowl max. 20 bar*)

Max. condensate amount:

25 cm³

Flow:

2000 l/min

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Optional:

Version with protective cage -S, Version with metal bowl* and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC
*Metal bowl M with automatic discharge AM / AMNC: max. 16 bar, **as soon as the inlet pressure falls below the minimum input pressure, the drain valve opens automatically. The semi-automatic drain valve can be prevented from opening by screwing on the drain plug tightly.

Documents:

More information Less information
Filter - Multifix model series 1, 2000 l/min:
14 of 14 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
