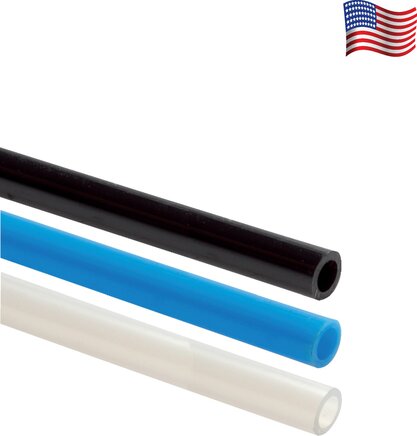

Imperial polyamide hoses, standard, PA

Description

Properties:
Semi-stiff, easy to move and kink resistant. Preferably for use with compressed air, hydraulic and fuel lines. Suitable for use in cable carriers. Colour black: UV-resistant.

Temperature range:
-15°C to +90°C

Shore hardness:
70 D

Roll length:
30 m

Reference values for the pressure utilisation under temperature loading:
to +20°C: 100%, +30°C: 87%, +40°C: 74%, +50°C: 64%, +60°C: 56%, +70°C: 51%, +80°C: 46%, +90°C: 43%

Find the right item

Hose Ø outside x inside [mm]
External Ø [mm]
colour
Operating pressure [bar]
Min. bend radius [mm]

Imperial polyamide hoses, standard, PA: 20 of 21 items

Polyamide hose, 1/8" x 2.4 mm, black
  • Hose Ø outside x inside [mm]

    1/8" x 2.4

  • External Ø [mm]

    3,17

  • Operating pressure [bar]

    18

  • Min. bend radius [mm]

    12

Immediately available

1,49 €

Polyamide hose, 5/32" x 2.7 mm, black
  • Hose Ø outside x inside [mm]

    5/32" x 2.7

  • External Ø [mm]

    3,97

  • Operating pressure [bar]

    24

  • Min. bend radius [mm]

    12

Immediately available

1,57 €

Polyamide hose, 3/16" x 3.5 mm, black
  • Hose Ø outside x inside [mm]

    3/16" x 3.5

  • External Ø [mm]

    4,76

  • Operating pressure [bar]

    17

  • Min. bend radius [mm]

    16

Immediately available

2,33 €

Polyamide hose, 1/4" x 4.6 mm, black
  • Hose Ø outside x inside [mm]

    1/4" x 4.6

  • External Ø [mm]

    6,35

  • Operating pressure [bar]

    20

  • Min. bend radius [mm]

    25

Immediately available

3,22 €

Polyamide hose, 5/16" x 5.9 mm, black
  • Hose Ø outside x inside [mm]

    5/16" x 5.9

  • External Ø [mm]

    7,94

  • Operating pressure [bar]

    16

  • Min. bend radius [mm]

    65

Immediately available

5,34 €

Polyamide hose, 3/8" x 7.0 mm, black
  • Hose Ø outside x inside [mm]

    3/8" x 7.0

  • External Ø [mm]

    9,52

  • Operating pressure [bar]

    17

  • Min. bend radius [mm]

    65

Immediately available

6,59 €

Polyamide hose, 1/2" x 9.5 mm, black
  • Hose Ø outside x inside [mm]

    1/2" x 9.5

  • External Ø [mm]

    12,70

  • Operating pressure [bar]

    16

  • Min. bend radius [mm]

    108

Immediately available

10,95 €

Polyamide hose, 1/8" x 2.4 mm, blue
  • Hose Ø outside x inside [mm]

    1/8" x 2.4

  • External Ø [mm]

    3,17

  • Operating pressure [bar]

    18

  • Min. bend radius [mm]

    12

Immediately available

1,49 €

Polyamide hose, 5/32" x 2.7 mm, blue
  • Hose Ø outside x inside [mm]

    5/32" x 2.7

  • External Ø [mm]

    3,97

  • Operating pressure [bar]

    24

  • Min. bend radius [mm]

    12

Immediately available

1,57 €

Polyamide hose, 3/16" x 3.5 mm, blue
  • Hose Ø outside x inside [mm]

    3/16" x 3.5

  • External Ø [mm]

    4,76

  • Operating pressure [bar]

    17

  • Min. bend radius [mm]

    16

Immediately available

2,33 €

Polyamide hose, 1/4" x 4.6 mm, blue
  • Hose Ø outside x inside [mm]

    1/4" x 4.6

  • External Ø [mm]

    6,35

  • Operating pressure [bar]

    20

  • Min. bend radius [mm]

    25

Immediately available

3,22 €

Polyamide hose, 5/16" x 5.9 mm, blue
  • Hose Ø outside x inside [mm]

    5/16" x 5.9

  • External Ø [mm]

    7,94

  • Operating pressure [bar]

    16

  • Min. bend radius [mm]

    65

Immediately available

5,34 €

Polyamide hose, 3/8" x 7.0 mm, blue
  • Hose Ø outside x inside [mm]

    3/8" x 7.0

  • External Ø [mm]

    9,52

  • Operating pressure [bar]

    17

  • Min. bend radius [mm]

    65

Immediately available

6,59 €

Polyamide hose, 1/2" x 9.5 mm, blue
  • Hose Ø outside x inside [mm]

    1/2" x 9.5

  • External Ø [mm]

    12,70

  • Operating pressure [bar]

    16

  • Min. bend radius [mm]

    108

Immediately available

10,95 €

Polyamide hose, 1/8" x 2.4 mm, natural
  • Hose Ø outside x inside [mm]

    1/8" x 2.4

  • External Ø [mm]

    3,17

  • Operating pressure [bar]

    18

  • Min. bend radius [mm]

    12

Immediately available

1,49 €

Polyamide hose, 5/32" x 2.7 mm, natural
  • Hose Ø outside x inside [mm]

    5/32" x 2.7

  • External Ø [mm]

    3,97

  • Operating pressure [bar]

    24

  • Min. bend radius [mm]

    12

Immediately available

1,57 €

Polyamide hose, 3/16" x 3.5 mm, natural
  • Hose Ø outside x inside [mm]

    3/16" x 3.5

  • External Ø [mm]

    4,76

  • Operating pressure [bar]

    17

  • Min. bend radius [mm]

    16

Immediately available

2,33 €

Polyamide hose, 1/4" x 4.6 mm, natural
  • Hose Ø outside x inside [mm]

    1/4" x 4.6

  • External Ø [mm]

    6,35

  • Operating pressure [bar]

    20

  • Min. bend radius [mm]

    25

Immediately available

3,22 €

Polyamide hose, 5/16" x 5.9 mm, natural
  • Hose Ø outside x inside [mm]

    5/16" x 5.9

  • External Ø [mm]

    7,94

  • Operating pressure [bar]

    16

  • Min. bend radius [mm]

    65

Immediately available

5,34 €

Polyamide hose, 3/8" x 7.0 mm, natural
  • Hose Ø outside x inside [mm]

    3/8" x 7.0

  • External Ø [mm]

    9,52

  • Operating pressure [bar]

    17

  • Min. bend radius [mm]

    65

Immediately available

6,59 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
