Inductive proximity switch (M 5 - M 8 - M 12 - M 18 - M 30), universal

Description

Materials:
Housing: Brass nickel-plated / chrome-plated or stainless steel, sensor surface: Plastic

Temperature range:
-25°C bis +70°C

Operating voltage:
10 - 30 V DC

Control output:
max. 200 mA (PNP)

Switching status indicator:
LED, orange

Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection

Protection class:
IP 67

Advantages:
•IO link compatible, •outstanding value

Find the right item

Connection
Version
Design
Safety distance (SN) [mm]
G
L1 [mm]
L2 [mm]
L3 [mm]

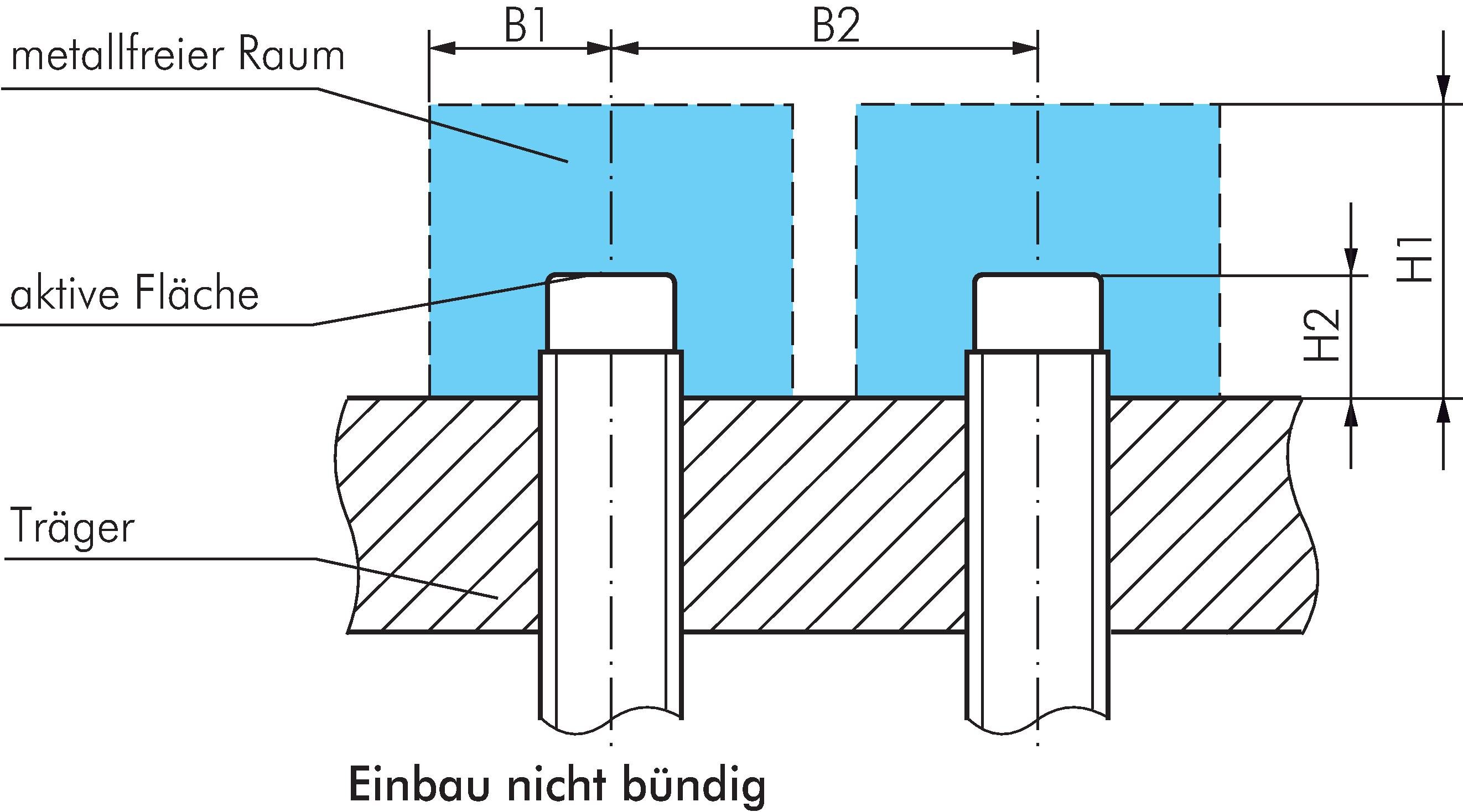

H1 [mm]
H2 [mm]
B1 [mm]
B2 [mm]

Inductive proximity switch (M 5 - M 8 - M 12 - M 18 - M 30), universal: 20 of 28 items

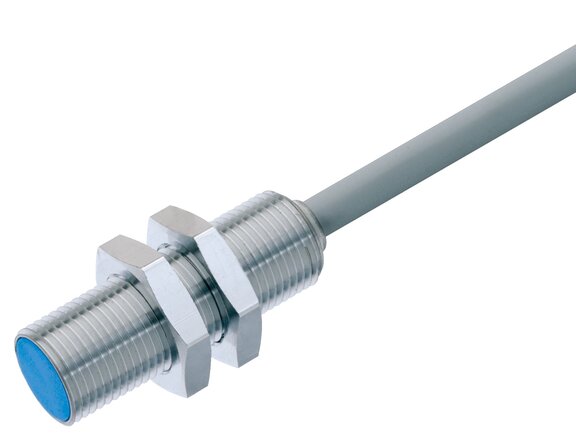

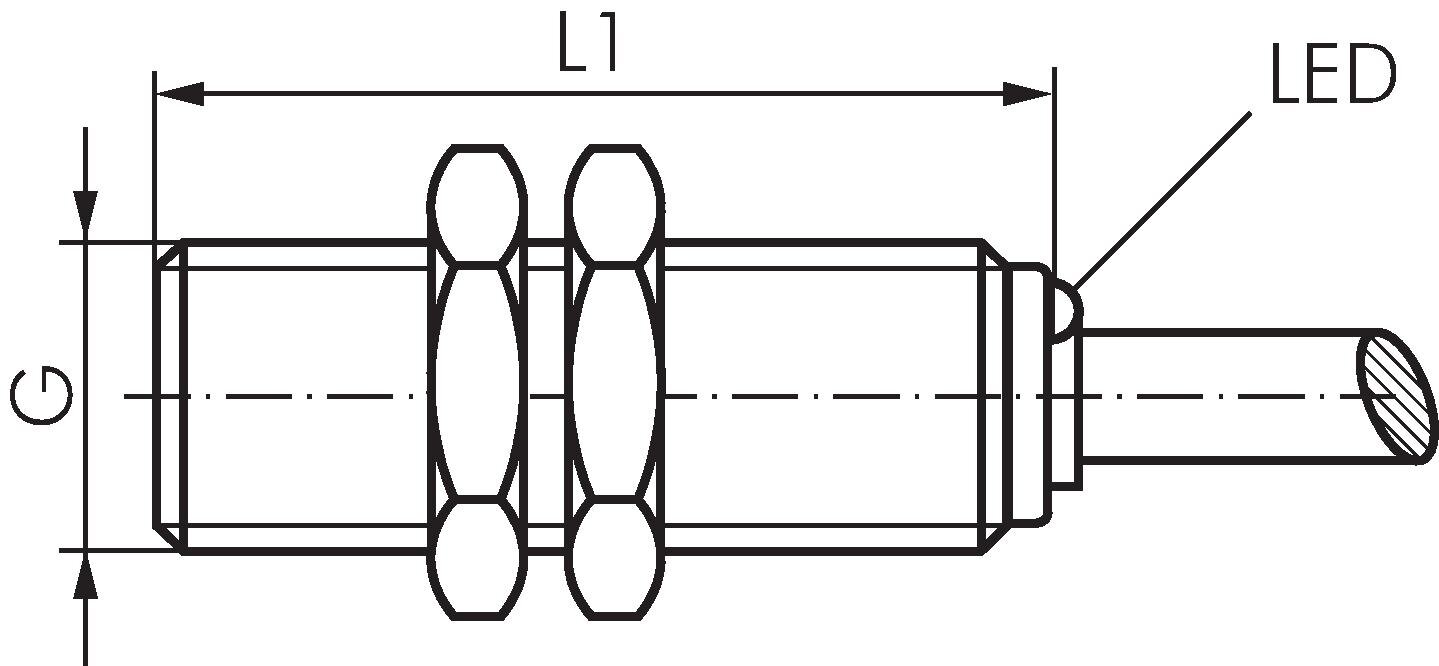

Ind. proximity switch, M 5, SN0,8 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 5

  • Safety distance (SN) [mm]

    0,8

  • G

    M 5 x 0.5

  • L1 [mm]

    25

Immediately available

83,71 €

Ind. proximity switch, M 8, SN1,5 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 8

  • Safety distance (SN) [mm]

    1,5

  • G

    M 8 x 1

  • L1 [mm]

    35

Immediately available

54,63 €

Ind. proximity switch, M 12, SN2,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 12

  • Safety distance (SN) [mm]

    2,0

  • G

    M 12 x 1

  • L1 [mm]

    35

Immediately available

57,27 €

Ind. proximity switch, M 12, SN2,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 12

  • Safety distance (SN) [mm]

    2,0

  • G

    M 12 x 1

  • L1 [mm]

    50

Immediately available

57,27 €

Ind. proximity switch, M 18, SN5,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 18

  • Safety distance (SN) [mm]

    5,0

  • G

    M 18 x 1

  • L1 [mm]

    35

Immediately available

58,51 €

Ind. proximity switch, M 18, SN5,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 18

  • Safety distance (SN) [mm]

    5,0

  • G

    M 18 x 1

  • L1 [mm]

    50

Immediately available

58,51 €

Ind. proximity switch, M 30, SN10,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    flush installable, NO contact

  • Design

    M 30

  • Safety distance (SN) [mm]

    10,0

  • G

    M 30 x 1.5

  • L1 [mm]

    35

Immediately available

69,62 €

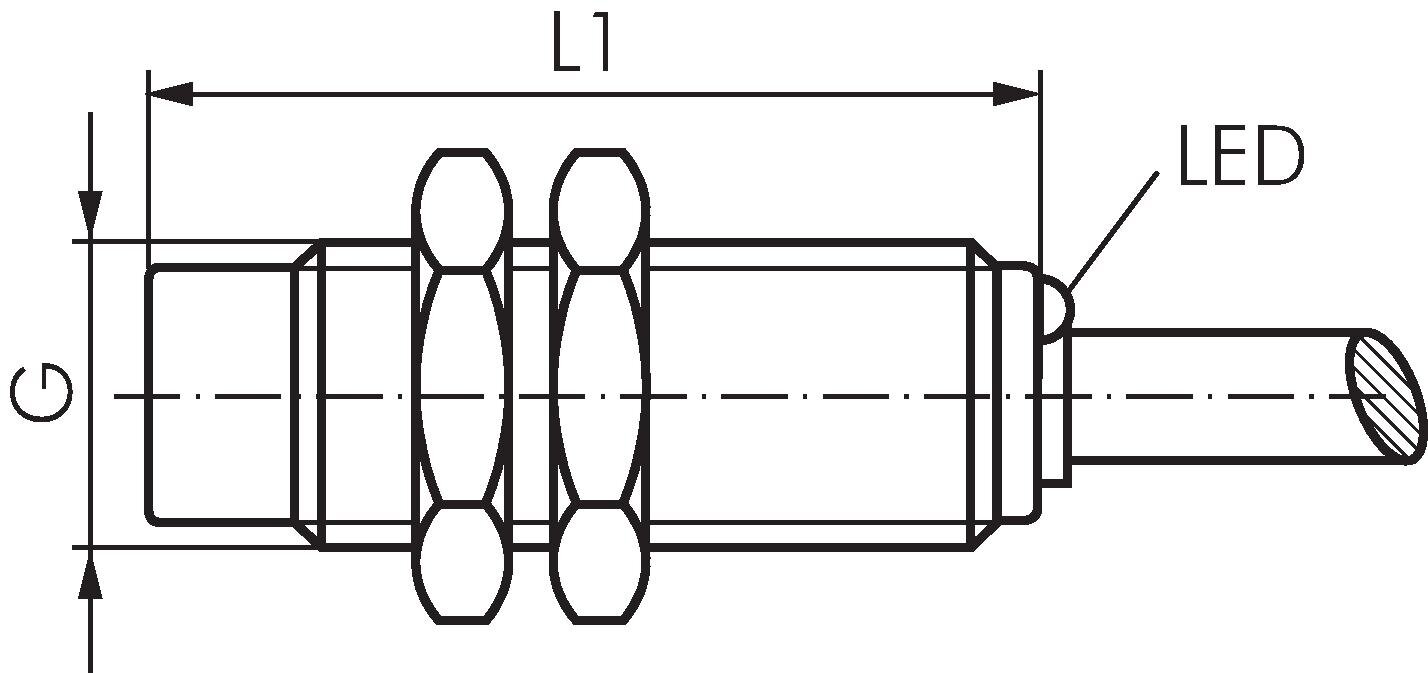

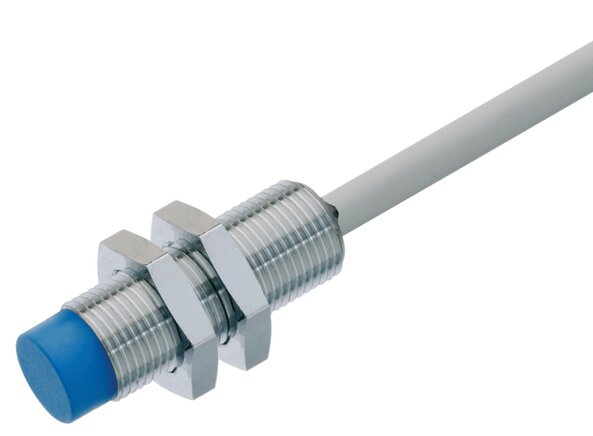

Ind. proximity switch, M 8, SN2,5 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    non-flush installable, NO contact

  • Design

    M 8

  • Safety distance (SN) [mm]

    2,5

  • G

    M 8 x 1

  • L1 [mm]

    35

Immediately available

54,63 €

Ind. proximity switch, M 12, SN4,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    non-flush installable, NO contact

  • Design

    M 12

  • Safety distance (SN) [mm]

    4,0

  • G

    M 12 x 1

  • L1 [mm]

    35

Immediately available

57,27 €

Ind. proximity switch, M 12, SN4,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    non-flush installable, NO contact

  • Design

    M 12

  • Safety distance (SN) [mm]

    4,0

  • G

    M 12 x 1

  • L1 [mm]

    50

Immediately available

57,27 €

Ind. proximity switch, M 18, SN8,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    non-flush installable, NO contact

  • Design

    M 18

  • Safety distance (SN) [mm]

    8,0

  • G

    M 18 x 1

  • L1 [mm]

    35

Immediately available

58,51 €

Ind. proximity switch, M 18, SN8,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    non-flush installable, NO contact

  • Design

    M 18

  • Safety distance (SN) [mm]

    8,0

  • G

    M 18 x 1

  • L1 [mm]

    50

Immediately available

58,51 €

Ind. proximity switch, M 30, SN15,0 - Cable (2 m)
  • Connection

    Cable (2 m)

  • Version

    non-flush installable, NO contact

  • Design

    M 30

  • Safety distance (SN) [mm]

    15,0

  • G

    M 30 x 1.5

  • L1 [mm]

    35

Immediately available

69,62 €

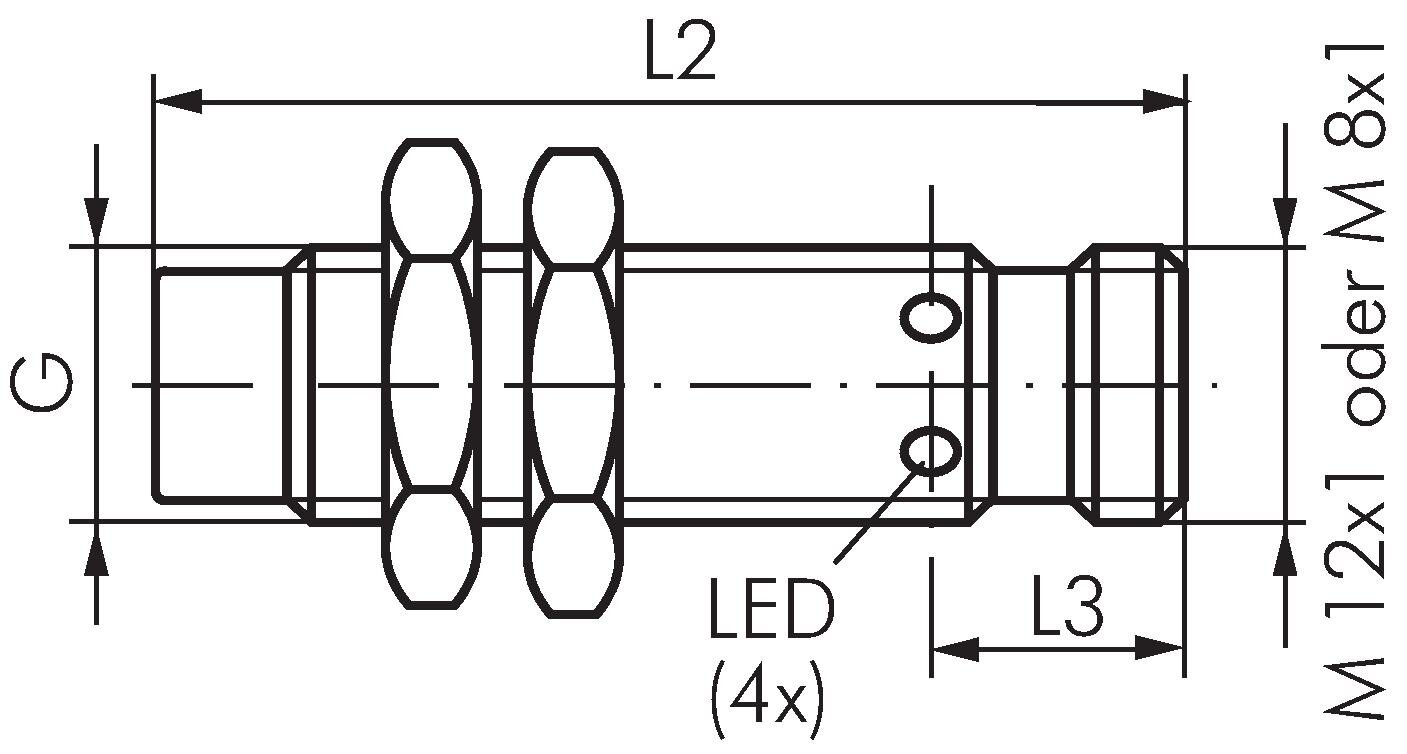

Ind. proximity switch, M 8, SN1,5 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    flush installable, NO contact

  • Design

    M 8

  • Safety distance (SN) [mm]

    1,5

  • G

    M 8 x 1

  • L1 [mm]

    35

Immediately available

56,91 €

Ind. proximity switch, M 12, SN2,0 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    flush installable, NO contact

  • Design

    M 12

  • Safety distance (SN) [mm]

    2,0

  • G

    M 12 x 1

  • L1 [mm]

    35

Immediately available

57,27 €

Ind. proximity switch, M 12, SN2,0 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    flush installable, NO contact

  • Design

    M 12

  • Safety distance (SN) [mm]

    2,0

  • G

    M 12 x 1

  • L1 [mm]

    50

Immediately available

57,27 €

Ind. proximity switch, M 18, SN5,0 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    flush installable, NO contact

  • Design

    M 18

  • Safety distance (SN) [mm]

    5,0

  • G

    M 18 x 1

  • L1 [mm]

    35

Immediately available

58,51 €

Ind. proximity switch, M 18, SN5,0 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    flush installable, NO contact

  • Design

    M 18

  • Safety distance (SN) [mm]

    5,0

  • G

    M 18 x 1

  • L1 [mm]

    50

Immediately available

58,51 €

Ind. proximity switch, M 30, SN10,0 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    flush installable, NO contact

  • Design

    M 30

  • Safety distance (SN) [mm]

    10,0

  • G

    M 30 x 1.5

  • L1 [mm]

    35

Immediately available

69,62 €

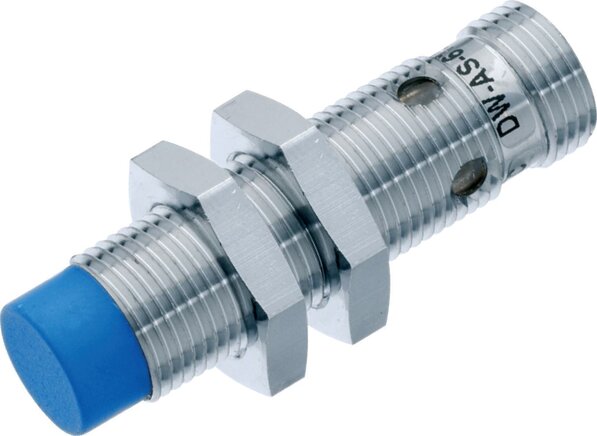

Ind. proximity switch, M 8, SN2,5 - M 12 plug (4-pin)
  • Connection

    M 12 plug (4-pin)

  • Version

    non-flush installable, NO contact

  • Design

    M 8

  • Safety distance (SN) [mm]

    2,5

  • G

    M 8 x 1

  • L1 [mm]

    35

Immediately available

56,91 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
