Locking units, for small cylinders ISO 6432 (will be discontinued)

Description

Materials:
Body: anodized aluminium, clamp jaws: brass, piston: POM, spring: spring steel, seals: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
4 - 10 bar

Function:
The locking unit is used to firmly hold the round stock (chromium-plated steel, stainless steel) such as piston rods, guides etc. in the desired position. Special adaptors for cylinders are available. During venting (energy failure), the clamping unit automatically clamps the round stock and releases it (powerless break!) during pressure application.

Advantages:
•short response time and high switching frequency possible,
•long service life,
•exactly reproducible positioning thanks to exact guidance of the jaws in the housing,
•due to the use of special brass extremely low wear on jaws and the rod,
•automatic, safe break in the event of energy failure (powerless break!)

Warning:
The locking unit should not be used as a safety device!

Warning:
When using pneumatic cylinders, the locking unit should be opened only if equilibrium of forces prevails at the piston, otherwise the backward movement of the piston rod could lead to an accident. Shutting off the supply of compressed air on both the sides (e.g. using a 5/3-way valve, centre position shut off) guarantees no safety! In many cases a 5/3-way valve can cause breathing in the centre position.

Find the right item

Version
Retention force (static) [N]
Requires cylinder piston rod extension (ZDM model series)

Locking units, for small cylinders ISO 6432 (will be discontinued): 4 of 4 items

Feststelleinheit für Zyl. ISO6431 16mm, 6mm KoSta
  • Version

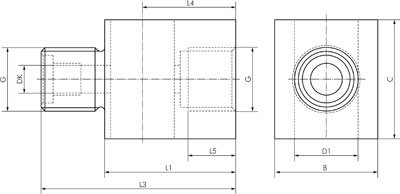

    Locking unit with adapter for cylinders

  • for ISO

    for ISO 6432 small cylinders

  • Retention force (static) [N]

    200

  • Requires cylinder piston rod extension (ZDM model series)

    35

Immediately available

184,88 €

Feststelleinheit für Zyl. ISO6431 20mm, 8mm KoSta
  • Version

    Locking unit with adapter for cylinders

  • for ISO

    for ISO 6432 small cylinders

  • Retention force (static) [N]

    350

  • Requires cylinder piston rod extension (ZDM model series)

    50

Immediately available

232,83 €

Feststelleinheit für Zyl. ISO6431 25mm, 10mm KoSta
  • Version

    Locking unit with adapter for cylinders

  • for ISO

    for ISO 6432 small cylinders

  • Retention force (static) [N]

    400

  • Requires cylinder piston rod extension (ZDM model series)

    50

Immediately available

261,78 €

Feststellpatrone für 8mm Kolbenstange
  • for ISO

    for ISO 6432 small cylinders

  • Retention force (static) [N]

    350

  • Requires cylinder piston rod extension (ZDM model series)

    50

  • Version

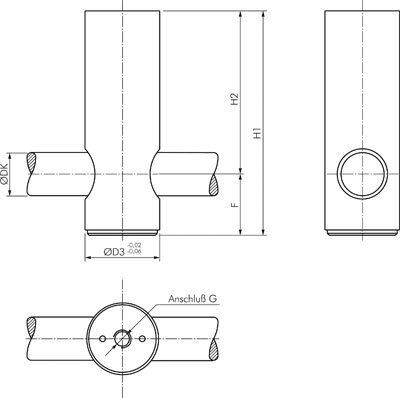

    Clamping cartridge, single (also as replacement part for locking unit with adapter)

Immediately available

115,63 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
