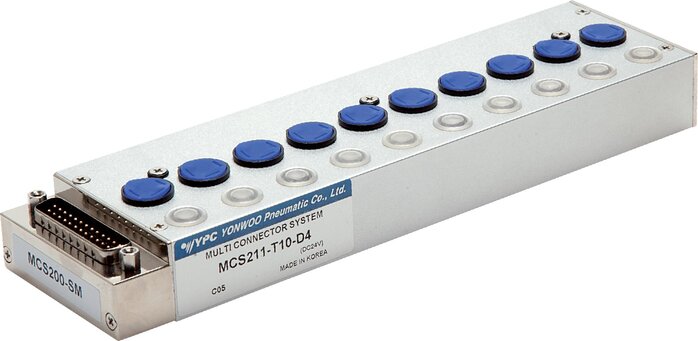

Multi-pin terminal boxes G 1/8" for SF2000, Series MCS200 (will be discontinued)

Control voltages:

24 V DC

Voltage tolerance:

± 10 %

Power consumption:

2.5 W /station

Protection class:

IP 40

Version:

with LED and protection circuit

Advantages:

•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement

Description:

The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.

Assembly:

1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.

Function:

Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF2000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
