Item group

Pressure regulators with continuous pressure supply - Multifix, up to 8500 l/min***

Version:

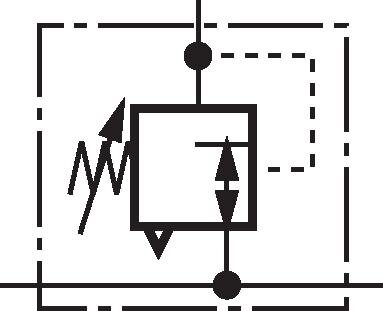

Self-relieving pressure regulator

Materials:

Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR

Temperature range:

-10 to +60 °C

Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):

G 1/4" (model series 0: G 1/8")

Media:

Oiled and unoiled compressed air, neutral gasses

Advantages:

•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it

Input pressure:

max. 16 bar (model series 0: when using a coupling kit max. 12 bar)

Scope of delivery:

Pressure regulator including pressure gauge (model series 0 & 1: 40 mm (G 1/8"), model series 2: 50 mm (G 1/4"))

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)

Optional:

Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11

Advantages:

•By combining several adjustable nozzles into a block, several compressed air circuits can be supplied with independently regulated pressure from one pressure supply. The compressed air outlet is placed opposite the pressure gauge (model series 0 & 1: G 1/4", model series 2: G 1/2")
*Standard series, please prefer for use, since the pressure control range is universally usable, **Volkswagen lock (is supplied without a key) ***measured at P1=10 bar, P2=6.3 bar and 1 bar pressure drop

Documents:

More information Less information
Pressure regulators with continuous pressure supply - Multifix, up to 8500 l/min***:
20 of 21 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
